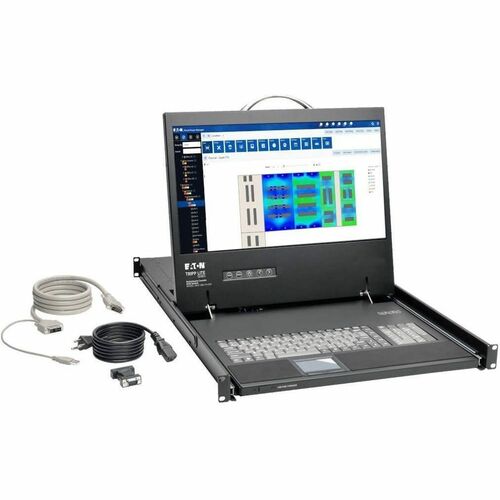

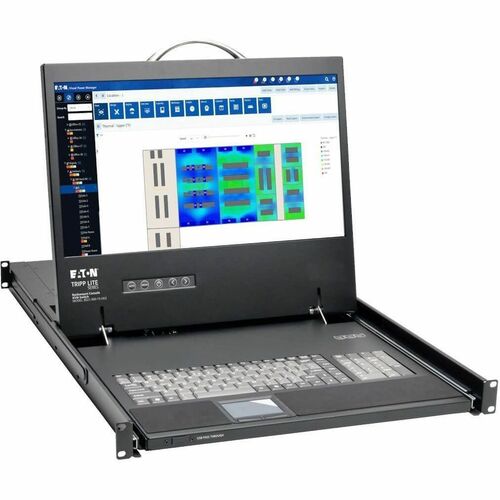

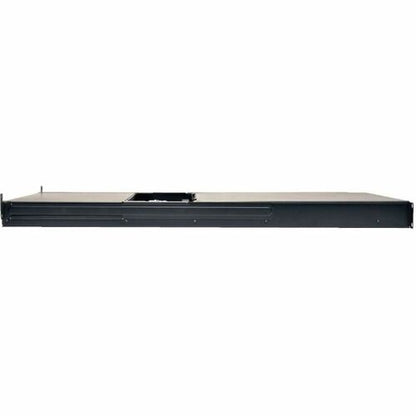

The B021-000-19-HD2 1U Rack-Mount Console combines a full keyboard, numeric keypad, touchpad and 19-inch color LCD for easy all-in-one control of a computer, server or KVM switch. Easy to install and simple to operate, it slides neatly into 1U of rack space when not in use.

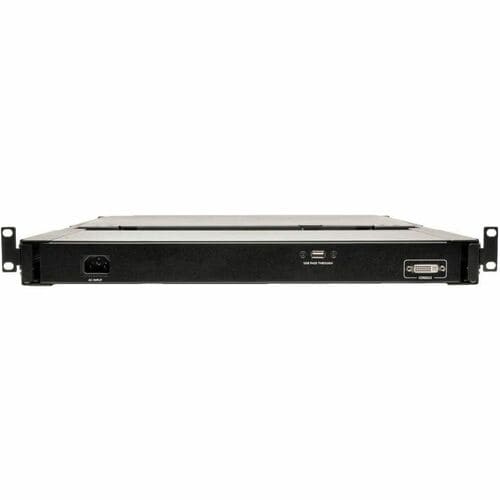

The rear DVI-I console port supports both digital and analog video signals for connecting to a DVI- or VGA-enabled server or KVM switch (a DVI to VGA adapter is included). The LCD screen supports video resolutions up to 1920 x 1080 (1080p). Video settings of the connected computer are automatically adjusted for optimal display on the LCD screen. USB 2.0 pass-through ports on the front and rear allow you to connect a USB peripheral, such as a flash drive or CAC card reader, to your computer with a USB cable (sold separately).

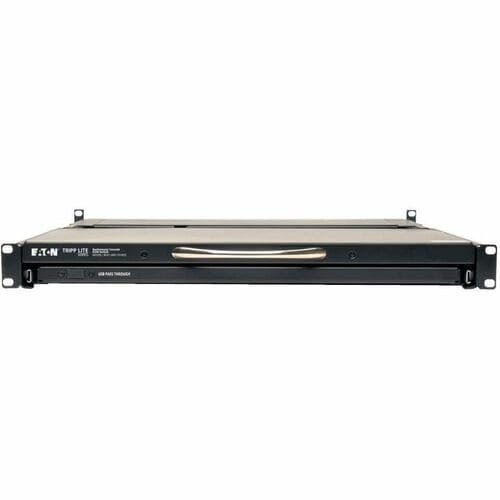

The B021-000-19-HD2 mounts into 1U of space in an EIA-standard 19-inch rack using the included mounting brackets and user-supplied screws. Simply pull out the steel drawer and flip up the screen when needed, then slide it back into the rack in automatic sleep mode when you're finished. This keeps the keyboard and screen from blocking access to rack equipment when the console is not in use.
This console is compatible with all major operating systems and KVM switches with a VGA or DVI monitor port and USB keyboard/mouse ports. This enables the B021-000-19-HD2 to be integrated into an existing system to provide secure management of critical network systems without a major investment in new hardware.
More from the Manufacturer
Key Features
- DVI-I port supports both digital and analog video signals
- 19 in. LCD screen supports video resolutions up to 1920 x 1080
- USB pass-through port for connecting USB peripherals
- Goes into automatic sleep mode when cover is closed
- Compatible with all major operating systems
Dimensions
| Height | 4.5 inches |
|---|---|
| Width | 28.5 inches |
| Length | 36.5 inches |
| Weight | 40.65 pounds |
| Product Type | LCD Rack Console |
| Platform Supported | Mac |
| Platform Supported | PC |
| Platform Supported | Linux |
| Platform Supported | Sun |
| Platform Supported | Unix |
| Screen Resolution | 1920 x 1080 |
| Screen Size | 19" |
| Rack Height | 1U |
| Brand Name | Tripp Lite series |
| Display Screen Type | LCD |
| USB | Yes |
| DVI | Yes |
| Number of DVI Ports | 1 |
| KVM Switch | No |
| Number of Computers Supported | 1 |
| TAA Compliant | Yes |
| Device Type | LCD Rack Console |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Screen Resolution | 1920 x 1080 |
| Screen Size | 19" |
| Screen Mode | Full HD |
| Display Screen Type | LCD |
| Product Type | LCD Rack Console |
| Manufacturer Part Number | B021-000-19-HD2 |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer | Eaton Corporation |
| Product Model | B021-000-19-HD2 |
| Product Name | 1U Rack-Mount Console |
| Brand Name | Tripp Lite series |
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| USB | Yes |
| DVI | Yes |
| Number of DVI Ports | 1 |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 27.78 lb |
| Height | 1.7" |
| Width | 18.8" |
| Depth | 27.3" |
| Product Color | Black |
| Color Family | Black |
| KVM Switch | No |
| Number of Computers Supported | 1 |
| Device Type | LCD Rack Console |
