RDP Optimized Thin Clients for Business
+ Support for native dual displays and 5GHz WLAN Deployment

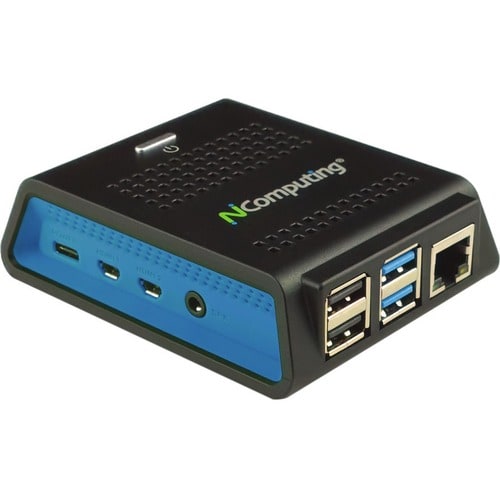

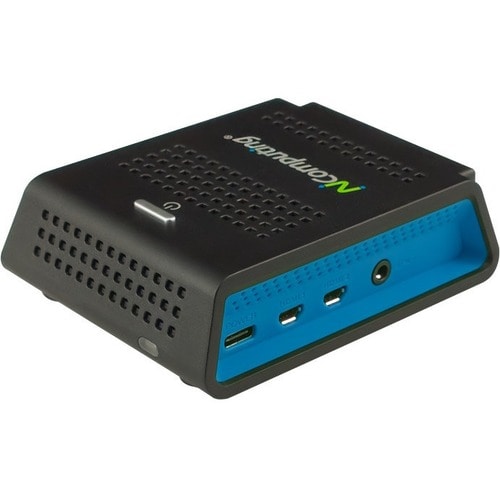

The RX420(RDP) thin client is built on the Raspberry Pi 4 platform, fully optimized for RDP achieving compelling performance and value. Designed and optimized specifically for Microsoft RDS and VERDE VDI, the RX420(RDP) is cloud-ready and provides a rich PC-like experience powered by Quadcore Broadcom 2711 (ARM v8) 64-bit system-on-chip. RX420(RDP) features native dual display, full-screen, full-motion HD multimedia playback with Microsoft RemoteFX support, dualband 2.4/5Ghz WiFi connectivity and built-in transparent USB redirection for unparalleled peripheral support.
RX420(RDP) configuration and firmware updates can be remotely managed by the IT admin. The RX420(RDP) provides a simple to deploy, centrally managed, high performance virtual desktop, perfect for use in SMB and SME organizations with Microsoft Windows Server or VDI infrastructure.
Microsoft RemoteFX session support
Enabling the RemoteFX feature for Remote Desktop connection greatly enhances the user's visual experience. Especially host systems equipped with supported graphic cards will benefit.
NComputing vCAST Streaming with client-side rendering via SuperRDP
SuperRDP brings the power of our vCAST Streaming technology to RDP - reduceing server-side CPU usage for streaming services like YouTube as well as local media content without the need for expensive GPUs. This allows for higher quality media streaming utilizing network bandwidth instead of heavy server CPU usage, thereby supporting more concurrent users. SuperRDP software is available seperately and installs on the server.
Central management & express deployment with PMC Device Management
The RX420(RDP) is easy to configure from our optional PMC Device Management solution. An admin can remotely manage devices over local and wide-area networks, including locations behind firewalls and NAT-routers, through an easy-to-use web-based user interface. Administrators may define multiple device profile configurations, then push to individual or grouped devices through scheduled updates, including firmware. A dashboard summary and detailed event logging provide valuable information about your deployment.

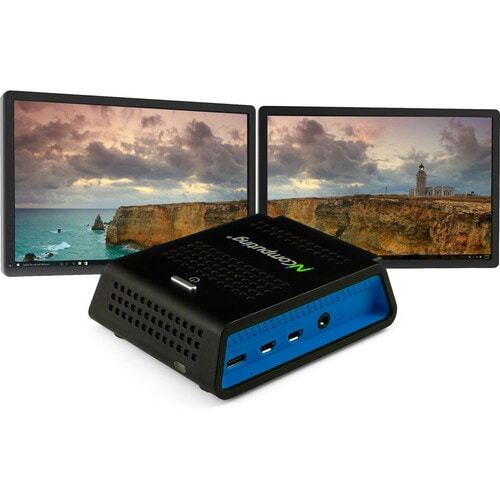

Native Dual Monitor Support
Two micro-HDMI ports support either a single display with resolutions up to 4K @60Hz or dual display configurations of up to 4k@30Hz. NComputing recommends 2560x1600 @60Hz max resolution for Microsoft RDP with RemoteFX.
Licensing
RX420(RDP) comes with RDP and VERDE VDI connection mode support. Separate Microsoft RDS and NComputing VERDE VDI software connection licenses are required. NComputing vCAST Streaming for RDP also require separate licenses. Contact NComputing for more details. RX420(RDP) comes with one year of firmware maintenance updates from the time of purchase.
Broad USB Peripheral
Support USB devices are transparently redirected, supporting mass storage, printers, scanners, smart card readers, headsets/speakers, webcams, COM ports, and 3D mice. Network-connected printers are also available.
+ Support for native dual displays and 5GHz WLAN Deployment
The RX420(RDP) thin client is built on the Raspberry Pi 4 platform, fully optimized for RDP achieving compelling performance and value. Designed and optimized specifically for Microsoft RDS and VERDE VDI, the RX420(RDP) is cloud-ready and provides a rich PC-like experience powered by Quadcore Broadcom 2711 (ARM v8) 64-bit system-on-chip. RX420(RDP) features native dual display, full-screen, full-motion HD multimedia playback with Microsoft RemoteFX support, dualband 2.4/5Ghz WiFi connectivity and built-in transparent USB redirection for unparalleled peripheral support.
RX420(RDP) configuration and firmware updates can be remotely managed by the IT admin. The RX420(RDP) provides a simple to deploy, centrally managed, high performance virtual desktop, perfect for use in SMB and SME organizations with Microsoft Windows Server or VDI infrastructure.
Microsoft RemoteFX session support
Enabling the RemoteFX feature for Remote Desktop connection greatly enhances the user's visual experience. Especially host systems equipped with supported graphic cards will benefit.
NComputing vCAST Streaming with client-side rendering via SuperRDP
SuperRDP brings the power of our vCAST Streaming technology to RDP - reduceing server-side CPU usage for streaming services like YouTube as well as local media content without the need for expensive GPUs. This allows for higher quality media streaming utilizing network bandwidth instead of heavy server CPU usage, thereby supporting more concurrent users. SuperRDP software is available seperately and installs on the server.
Central management & express deployment with PMC Device Management
The RX420(RDP) is easy to configure from our optional PMC Device Management solution. An admin can remotely manage devices over local and wide-area networks, including locations behind firewalls and NAT-routers, through an easy-to-use web-based user interface. Administrators may define multiple device profile configurations, then push to individual or grouped devices through scheduled updates, including firmware. A dashboard summary and detailed event logging provide valuable information about your deployment.
Native Dual Monitor Support
Two micro-HDMI ports support either a single display with resolutions up to 4K @60Hz or dual display configurations of up to 4k@30Hz. NComputing recommends 2560x1600 @60Hz max resolution for Microsoft RDP with RemoteFX.
Licensing
RX420(RDP) comes with RDP and VERDE VDI connection mode support. Separate Microsoft RDS and NComputing VERDE VDI software connection licenses are required. NComputing vCAST Streaming for RDP also require separate licenses. Contact NComputing for more details. RX420(RDP) comes with one year of firmware maintenance updates from the time of purchase.
Broad USB Peripheral
Support USB devices are transparently redirected, supporting mass storage, printers, scanners, smart card readers, headsets/speakers, webcams, COM ports, and 3D mice. Network-connected printers are also available.
Key Features
- Microsoft RDP or NComputing VERDE VDI connection mode for Remote Desktop/VDI access
- RDP with Microsoft RemoteFX support for improved session performance
- Quadcore Broadcom 2711 (ARM v8) 1.5GHz 64-bit CPU
- Built-in 5GHz and 2.4GHz 802.11 b/g/n/ac Wi-Fi with Personal and Enterprise 802.1x security
- Maximum resolution: 3840x2160 (@60Hz single or @30Hz dual display); NComputing recommends 2560x1600 @60Hz max resolution for Microsoft RDP with RemoteFX
- 2 USB 3.0 and 2 USB 2.0 highspeed ports with transparent USB redirection
- 802.1x (PEAP, EAP-TLS, EAP-TTLS) support
- 16 GB internal Micro SD card and 2GB RAM
- Built-in Kensington security slot and sealed micro SD card for added protection
- National keyboard layout support
Dimensions
| Height | 3.25 inches |
|---|---|
| Width | 3.5 inches |
| Length | 4.5 inches |
| Weight | 0.69 pounds |
| Product Type | Thin Client |
| Limited Warranty | 1 Year |
| Standard Memory | 2 GB |
| Processor Speed | 1.50 GHz |
| Processor Type | Cortex A72 |
| Brand Name | NComputing |
| Processor Core | Quad-core (4 Core) |
| Environmentally Friendly | Yes |
| Bluetooth | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Ethernet Technology | Gigabit Ethernet |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Thin Client |
| Manufacturer Part Number | RX420-RDP |
| Manufacturer Website Address | http://www.ncomputing.com |
| Packaged Quantity | 1 |
| Manufacturer | NComputing Co. Ltd |
| Product Model | RX420 (RDP) |
| Product Name | RX420 (RDP) Thin Client |
| Brand Name | NComputing |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Standard Memory | 2 GB |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Ethernet Technology | Gigabit Ethernet |
| Weight (Approximate) | 3.70 oz |
| Height | 1.2" |
| Width | 3" |
| Depth | 3.7" |
| Processor Type | Cortex A72 |
| Processor Model | BCM2711 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 1.50 GHz |
| Processor Type | Cortex A72 |
| Processor Model | BCM2711 |
| Processor Core | Quad-core (4 Core) |
