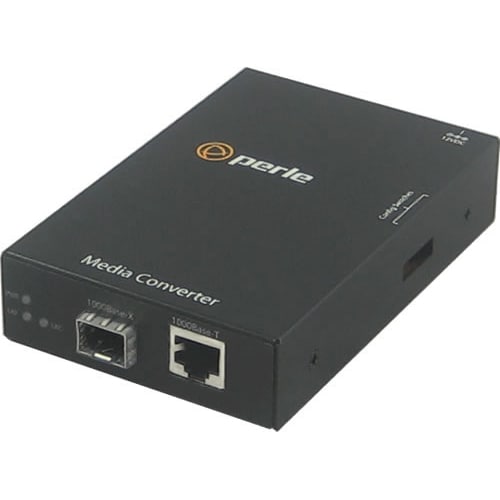

The Perle S-1000-SFP Media Converter provides a robust and flexible solution for extending your network by seamlessly connecting 10/100/1000BASE-T copper Ethernet to 1000BASE-X fiber optic links via an SFP (Small Form-Factor Pluggable) transceiver. This feature-rich converter offers an economical pathway to:
- Extend the reach of existing Ethernet networks over greater distances using fiber optic cabling.
- Preserve the lifespan of non-fiber-based networking equipment by integrating them into a fiber backbone.
- Facilitate direct connections between two network devices separated by significant distances.
The key advantage of the S-1000-SFP lies in its pluggable SFP fiber port, which allows for unparalleled network configuration flexibility. You can choose from a wide range of SFP transceivers (sold separately) to suit your specific fiber type (multimode or single-mode) and distance requirements, including those from Perle, Cisco, or other manufacturers adhering to the Multi-Source Agreement (MSA) standards.
Dimensions
| Height | 2.55 inches |
|---|---|
| Width | 6.4 inches |
| Length | 10.13 inches |
| Weight | 1.15 pounds |
| Product Type | Transceiver/Media Converter |
| Form Factor | External |
| Network Technology | 10/100/1000Base-T |
| Brand Name | Perle |
| Expansion Slot Type | SFP |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05050184 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-1000-SFP |
| Product Name | S-1000-SFP Gigabit Ethernet Managed Media Converter |
| Brand Name | Perle |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Network Technology | 10/100/1000Base-T |
| Weight (Approximate) | 10.56 oz |
| Height | 4.7" |
| Width | 3.1" |
| Depth | 1" |
