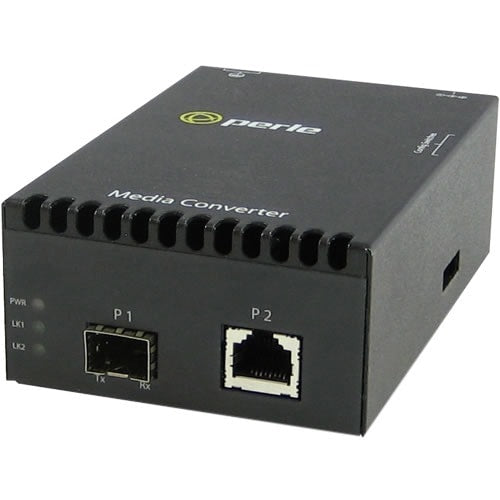

The Perle S-10GRT-SFP Media Converter offers a versatile and cost-effective solution for extending 10 Gigabit Ethernet (10GbE) network links. It transparently connects 10GBase-T Ethernet (RJ45) links with various fiber optic types and copper cabling through its adaptable SFP+ or XFP transceiver slot. This converter also supports auto-negotiation for 10/100/1000/2500/10000 Ethernet rates, providing flexibility for diverse network environments. Leveraging hot-swappable SFP+ or XFP transceivers (sold separately), users can achieve copper-to-fiber conversion using multimode or single-mode fiber, including CWDM/DWDM wavelengths, or copper-to-copper connectivity with SFP+ Direct Attach Copper (DAC) cables or XFP 10GBase-CX4 transceivers. This flexibility allows for seamless integration with Perle, Cisco, or other MSA-compliant transceivers, enabling various conversion scenarios. The S-10GRT is equipped with Perle's advanced diagnostic features, including Smart Link Pass-Through, Fiber Fault Alert, Link Test, and Loopback, which streamline troubleshooting and minimize on-site maintenance, all backed by a lifetime warranty and free worldwide technical support.
Dimensions
| Height | 2.75 inches |
|---|---|
| Width | 6.5 inches |
| Length | 10.25 inches |
| Weight | 1.96 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.10 km |
| Power Source | AC Adapter |
| Form Factor | Rail-mountable |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Network Technology | 10GBase-T |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-CX1 |
| Brand Name | Perle |
| Expansion Slot Type | SFP+ |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05060614 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-10GRT-SFP |
| Product Name | S-10GRT-SFP - 10 Gigabit Media and Rate Converter |
| Brand Name | Perle |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Maximum Distance Supported | 0.10 km |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Package Contents |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network Technology | 10GBase-CX1 |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-T |
| Weight (Approximate) | 12.70 oz |
| Height | 1.7" |
| Width | 4.7" |
| Depth | 3.1" |
