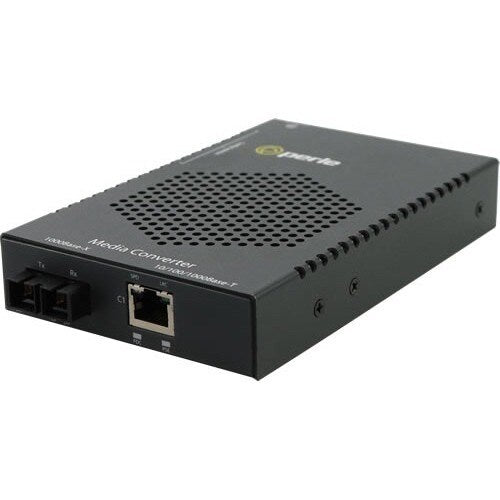

The Perle S-1110HP-ST05-XT is a ruggedized fiber media converter designed to transparently connect 10/100/1000Base-T copper Ethernet devices to 1000Base-X fiber optic networks. It uniquely provides up to 100 Watts of IEEE 802.3bt compliant Hi-PoE (Power over Ethernet) power to downstream Powered Devices (PDs). Engineered for extreme environments, this converter operates reliably in temperatures ranging from -40°F to +167°F (-40°C to +75°C), making it ideal for demanding industrial applications such as traffic management, oil and gas, weather tracking, and outdoor surveillance systems. It supports a wide array of PoE standards, including IEEE 802.3af, 802.3at (PoE+), and the higher power 802.3bt (PoE++, UPoE, 4PPoE), ensuring compatibility with various high-power devices like PTZ cameras with heaters and advanced wireless access points.
Dimensions
| Height | 2.76 inches |
|---|---|
| Width | 7.87 inches |
| Length | 11.81 inches |
| Weight | 1.3 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.55 km |
| Form Factor | Rack-mountable |
| Form Factor | Rail-mountable |
| Form Factor | Wall Mountable |
| Form Factor | Standalone |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Brand Name | Perle |
| Country of Origin | Canada |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | S-1110HP-XT |
| Number of ST Ports | 1 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05079920 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-1110HP-ST05-XT |
| Product Name | S-1110HP-ST05-XT Transceiver/Media Converter |
| Product Series | S-1110HP-XT |
| Brand Name | Perle |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Weight (Approximate) | 14.11 oz |
| Height | 1" |
| Width | 5.9" |
| Depth | 3.7" |
