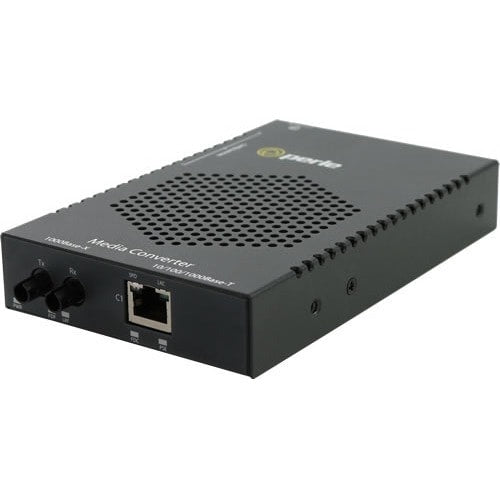

The Perle S-1110HP-ST160 is a robust Fiber Media Converter designed to seamlessly connect 10/100/1000Base-T copper Ethernet segments to single-mode fiber optic networks. It is specifically engineered to provide high-power IEEE 802.3bt compliant Hi-PoE (Power over Ethernet) up to 100 Watts, making it ideal for powering demanding devices such as PTZ security cameras with heaters, advanced building management LED lighting systems, and next-generation wireless access points (802.11ax/ac). This converter functions as Power Sourcing Equipment (PSE), delivering power over standard UTP cables to compatible Powered Devices (PDs) that support up to 100W of power. It is fully backward compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, ensuring compatibility with a wide range of PoE devices. The S-1110HP features dual 10/100/1000Base-T RJ45 ports, enabling it to power one or two PDs simultaneously. With fixed fiber ports supporting single-mode fiber over dual ST connectors, it extends network distances up to 160km, while also offering protection against EMI interference. Perle's advanced diagnostic features, including Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback, facilitate efficient troubleshooting and reduce maintenance needs. Backed by a lifetime warranty and free technical support, the S-1110HP-ST160 is a reliable and cost-effective solution for network infrastructure.
Dimensions
| Height | 2.76 inches |
|---|---|
| Width | 7.87 inches |
| Length | 11.81 inches |
| Weight | 3 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 160 km |
| Form Factor | Standalone |
| Form Factor | Rail-mountable |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-ZX |
| Brand Name | Perle |
| Country of Origin | Canada |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | S-1110HP |
| Number of ST Ports | 1 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05079494 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-1110HP-ST160 |
| Product Name | S-1110HP-ST160 Transceiver/Media Converter |
| Product Series | S-1110HP |
| Brand Name | Perle |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Maximum Distance Supported | 160 km |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Network Technology | 1000Base-ZX |
| Network Technology | 10/100/1000Base-T |
| Weight (Approximate) | 14.11 oz |
| Height | 1" |
| Width | 5.9" |
| Depth | 3.7" |
