Product Overview

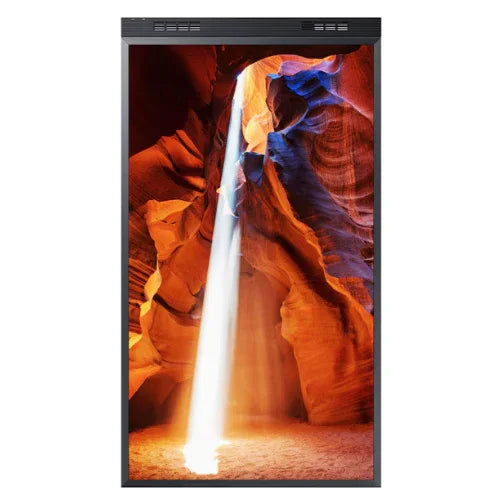

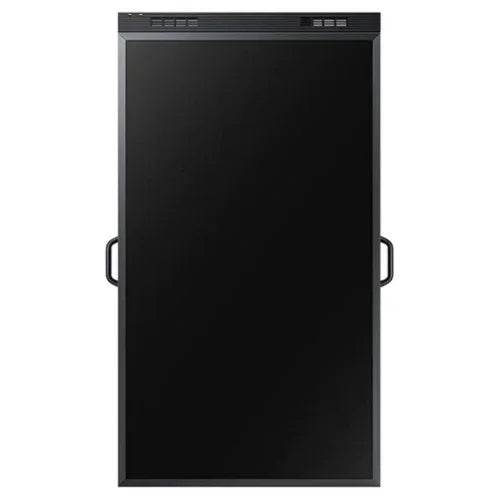

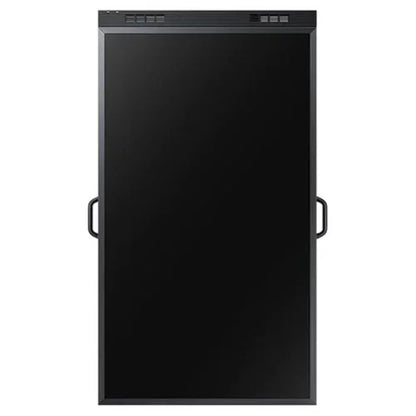

The Samsung OM55N-DS is a window display that is used to display advertisements in the retail store fronts and semi-outdoor areas with high brightness, 55-inch, and is a double-sided display. The ultra-bright panels on its in-store and outdoor sides will make the content bright and readable even on a sunny day. The display is 24/7 working, includes built-in content management, and combines slim form with robust construction, perfect for businesses that prefer to draw attention to their customers on the outside and strengthen their messages on the inside with a single unified display.
Key Features and Benefits
-
Dual-Sided Display: You can easily place your content on one side and on the other without needing two sets of hardware, eliminating the need to install additional equipment, complex assembly, and use of your energy.
-
Ultra-High Brightness: The OM55N-DS has a peak brightness of approximately 3000 nits on the window-facing side and 1000 nits on the indoor side, making it clear in bright ambient lighting and daylight.
-
Designed to be used 24/7, it is highly durable (dust protection, thermal sensors, ambient light sensors) and can be used in storefronts that do not close down, thus minimizing maintenance.
-
Integrated Smart Management Built-in: MagicInfo Player S7 (Tizen OS) enables the possibility to schedule, switch, and update content on the device without external media players, built-in WiFi and LAN make connection easy.
-
Slim and Clean Design: The bezel design (approximately 22.8 mm) is even and removable, and the sensors (IR, ambient) are placed in a detachable form, which ensures the display is more pleasing to the eye and allows for window mounting.
-
Powerful Build and Defense: IP5X dustproof, polarized screen (to view through sunglasses), temperature sensors, and automatic brightness serve to ensure stability even in conditions that may be extremely unfavorable in terms of light and environmental conditions.
Technical Specifications
|
Feature |
Specification |
|
Model |
Samsung OM55N-DS (OMN-DS Series) |
|
Display Size (Diagonal) |
55″ |
|
Native Resolution |
1920 × 1080 (Full HD) |
|
Panel Type / Backlight |
VA LCD, E-LED BLU; 120 Hz / 60 Hz switchable modes |
|
Brightness (Typical) |
≈ 3000 nits (window-facing side) / ≈ 1000 nits (indoor-facing side) |
|
Contrast Ratio (Static) |
~ 6000: 1 |
|
Viewing Angles (H / V) |
178° / 178° |
|
Response Time (Gray-to-Gray) |
approx. 6 ms (3000 nits mode), 10 ms (1000 nits mode) |
|
Color Gamut |
72% NTSC equivalent; display colors ~ 16.7 million (8-bit) |
|
Panel Haze / Glare |
0% haze (non-glare) |
|
Connectivity / Inputs |
2× HDMI 2.0 (HDCP 2.2), 2× USB-A, RJ45 LAN, RS-232C (In), external IR & ambient sensors |
|
Sensors & Controls |
Detachable IR, Ambient Light Sensor, Temperature Sensor, Auto Brightness Control |
|
Operating Hours / Duty Cycle |
24 / 7 continuous operation |
|
Power Supply |
Internal AC 100-240 V, 50/60 Hz |
|
Power Consumption |
Typical ~ 357 W; Maximum ~ 500 W; Standby < 1 W; Off-mode < 0.5 W |
|
Dimensions (W × H × D) |
1299 × 726.8 × 69.5 mm (set without stand) |
|
Weight |
~ 42 kg (net) / ~ 52 kg (packaged) |
|
Bezel Width |
~ 22.8 mm (even bezel all around) |
|
Environmental Conditions |
Operating Temp: 0-40 °C; Humidity: 10-80% non-condensing |
|
Special Ratings / Features |
IP5X dust protection; polarized screen viewable with sunglasses; dual display; MagicInfo Player S7; Tizen OS; portrait installation supported; embedded WiFi modules; auto source switching & recovery |
Product Information
Samsung OM55N-DS is made to suit retailers and brands that want to take advantage of the storefront windows to create the greatest impact. The dual face design ensures that the same device can accomplish what used to need two displays, one outward-facing and the other inward-facing, and saves future installation, as well as power and space consumption. The 3000-nit of its outward brightness has made its visuals attention-grabbing even in high daylight. With 1000 nits on the indoor side, the content is comfortably visible without blistering lights.
It is operational 24 hours a day and has ambient light, internal temperature, and auto brightness sensors to provide a balance between performance and protection. Featuring a dust-resistant build (IP5X), the construct is designed to withstand the elements of the front of the window. The screen is based on Samsung's embedded media player (MagicInfo) on the Tizen operating system that enables administrators to deliver content and updates without any external boxes.
Interconnection is secure: two HDMI, USB, LAN, RS-232, and external sensors. Bezel design is standardized and has a minimalistic design to allow clean installations, such as the portrait orientation commonly employed in vertical signs or window sign installations.
Power consumption is also high (average of 357 W; peak of 500 W); therefore, consideration of power supply, ventilation, and cooling during installation should be given. It has the trade-off of having performance and visibility that are superb, but cost and thermal management need to be controlled.
