Product Overview

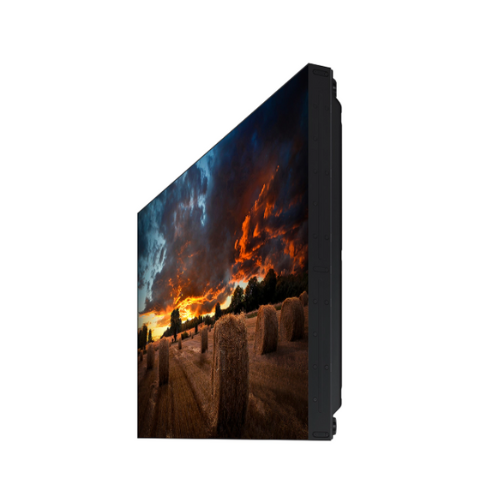

Samsung VM55B-U is a 55-inch ultra-thin-bezel video wall that is built to be used continuously in the business arena. It is a combination of Full HD clarity, high brightness, and a very thin frame, making smooth visual canvases in areas such as control rooms, shopping malls, meeting rooms, or digital signage walls. It is designed to withstand performance and stay durable in the environment that requires both of these factors without jeopardizing the appearance of the product with its 24/7 functionality, daisy-chain connection, and IP5X dust-resistance.
Key Features and Benefits
-
Seamless Multi-Panel Display: Bezel-to-bezel is only a couple of millimeters (a single 3.5 mm with a bezel-to-bezel distance of just 2.25 mm), and there are only a small number of bezel dead zones (2.25 mm top/left; 1.25 mm right/bottom). The VM55B-U lets you build video walls with a near-invisible seam.
-
Uninterrupted Picture in Every Situation: 500 nits of brightness with non-glare, 25 percent of haze treatment ensures that the content can be seen even in the bright ambient light. Broad 178o °/178o viewing angles ensure that images are clear even when they are not centred.
-
Stable 24/7 Function: This display has a rating of 24/7 operations, which is prepared to be online 24/7. It helps in enhancing its use over long periods and sustains performance.
-
Flexible Connectivity & Video Wall Support: Supports various types of video input: HDMI (2), DisplayPort 1.2, and DVI-D. It also has DisplayPort loop-out (daisy chaining) that allows video wall configurations without the use of external graphics cards. There is control over RS-232C, RJ45 (Ethernet), and IR.
-
Strong Durability and Environmental Protection: It is dust-resistant (IP5X rated) and has a temperature sensor, which is why it is convenient in harsh installations. Also, the factory calibration and such tools as Color Expert Pro (with mobile-camera-based corrections) can be used to achieve consistency in color and brightness of several panels.
Technical Specifications
Product Information
VM55B-U is designed to be used in video walls in which the continuity of the visuals and reliability are of primary concern. Its ultra-narrow bezel construction (joined to form an approximation of 3.5 mm) enables one to tile many displays with little visual intrusion, creating a unified, immersive visual platform.
The IPS panel guarantees wide viewing angles to provide the same color and contrast to the viewers located on the side or overhead. The display has a brightness of 500 nits with a non-glare finish, hence it can be read under bright ambient light environments, like in a public area. The haze system is useful to minimize the reflection that is necessary in video walls that have been mounted behind the glass or display windows.
Connectivity provides real video wall configurations: DisplayPort loop-out to chain video walls, accepts numerous types of inputs and control options (RS-232C, RJ45, IR), which can be centrally controlled. The display is operational 24 hours a day to provide day and night signage.

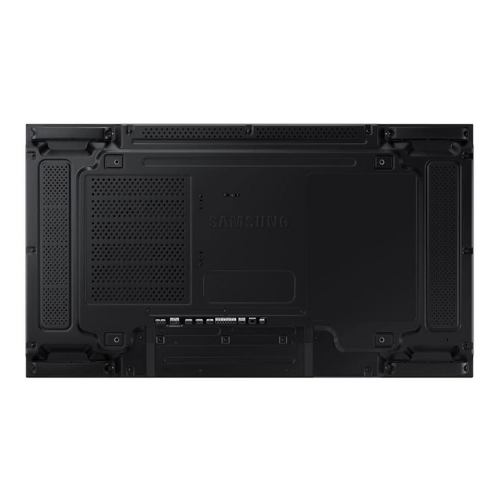

Power consumption is high (165 W average, 220 W peak), and power and cooling must be considered during installation. The display itself measures approximately 19.4 kg, and its size and thinness of 73 mm should allow it to be mounted without clutter. The VESA 600x400 is handy for easing wall-mounting.
The characteristics of durability are the IP5X (resistance to dust), strong construction and packaging, and temperature sensors. All of these minimize the chances of failure or visual loss in harsh conditions.
