Product overview

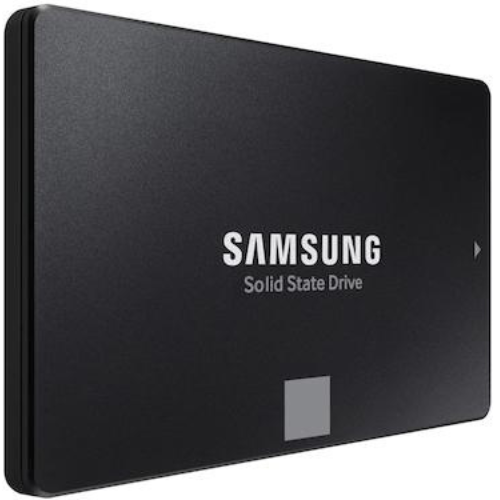

Samsung 870 EVO 1TB MZ-77E1T0E is an established combination of speed, durability, and wide compatibility that may be added to any system with a 2.5-inch SATA bay. It is based on Samsung V-NAND and an advanced controller to achieve almost the highest possible SATA throughput to boot fast, open applications fast, and copy files fast: a painless upgrade over HDDs and older SSDs.
The 870 EVO has a narrow profile of 7 mm which easily fits the desktop, laptop and small-form-factor PCs. TurboWrite caching is also intelligent enough to maintain peak performance even with heavy workloads, and the extreme endurance with the long warranty gives your TurboWrite the power and longevity to be used in your everyday life over several years.
Key features
-
SATA 6 Gb/s drive with 2.5/7 mm of wide system compatibility.
-
Near-max SATA speed up to 560 MB/s read and 530 MB/s write.
-
Good 4K random access and Intelligent TurboWrite caching.
-
Capacity of 1TB and class-leading endurance (up to 600 TBW).
-
V-NAND TLC powered by a controller and internal DRAM that is proven.
-
Hardware supporting encryption (AES 256-bit; TCG Opal/ IEEE 1667 host-dependent)
-
Health monitoring and easy movement through vendor software suite.
Technical specifications
|
Category |
Details |
|
Model |
MZ-77E1T0E (Samsung 870 EVO 1TB) |
|
Capacity |
1 TB |
|
Interface |
SATA 6 Gb/s (backward compatible with 3 Gb/s & 1.5 Gb/s) |
|
Form factor |
2.5″, 7 mm height |
|
Controller |
Samsung MKX-class |
|
NAND |
Samsung V-NAND (TLC) |
|
Sequential read |
Up to 560 MB/s |
|
Sequential write |
Up to 530 MB/s |
|
Random read (4K) |
Up to 98,000 IOPS (queue-depth dependent) |
|
Random write (4K) |
Up to 88,000 IOPS (queue-depth dependent) |
|
Cache |
Intelligent TurboWrite SLC cache; onboard DRAM |
|
Endurance |
600 TBW |
|
MTBF |
1.5 million hours (typical) |
|
Encryption |
AES 256-bit; TCG Opal 2.0 / IEEE 1667 (host support required) |
|
Operating temperature |
0–70 °C |
|
Power |
Low active/idle draw; device-sleep support (platform dependent) |
|
Dimensions / weight |
100 × 69.85 × 7 mm; ~45 g |
|
Warranty |
5-year limited |
|
In the box |
2.5″ SSD (software available via download) |
|
Typical use cases |
System boot drive, productivity apps, gaming libraries, photo/video projects, reliable storage upgrades |
