Product Overview

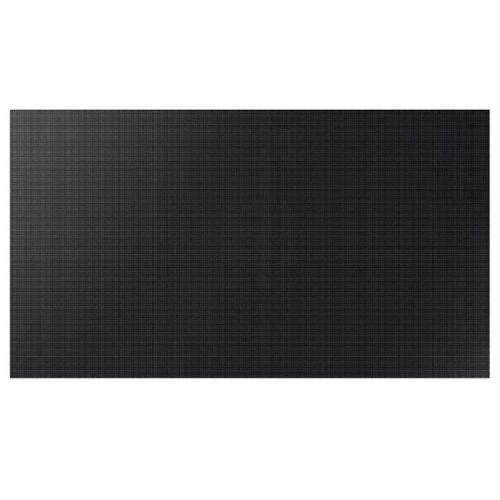

Samsung's F-IF020RM174 IFR Series gives you a 174-inch 4K LED Video Wall Display with an engaging, immersive large-scale viewing experience, and is suitable for all kinds of scenarios including corporate lobbies, control rooms, retail environments, and high-end presentations. The video wall boasts 4K UHD resolution and 2.0 mm fine pixel pitch LED technology. The video wall guarantees astonishing and vivid color accuracy and brightness. Due to its 4x4 modular design, it offers unrestricted flexibility for seamless integration and installation provided for any indoor space. The IFR Series has Samsung's image processing technology, as well as, protective housing that guarantees 24/7 use, demonstrating Samsung's trust in its durable construction.
Key Features
-
Massive 174” 4K UHD Display: Makes an immersive, impactful visual presentation with ultra-fine pixel precision, and offers a colossal viewing experience.
-
Fine pixel pitch (2.0mm): Ideal for environments with close viewing, offering sharp and highly detailed visuals.
-
4x4 Modular design: This design provides flexibility of maintaining seamless, borderless visuals, and it simplifies installation and maintenance.
-
Brilliant Color Reproduction: Uses LED HDR technology for deeper blacks, enhanced contrast, and rich color depth.
-
High Brightness & Uniformity: With a uniform cross the whole display, the high brightness offers a professional illumination performance.
-
Slim, Lightweight Design: Easy to mount and maintain, minimizing installation complexity.
-
24/7 Commercial Operation: Engineered for long-term reliability in mission-critical and high-traffic areas.
-
Versatile Connectivity: Supports multiple input sources for flexible content management and display control.
Technical Specifications
Feature |
Specification |
Brand |
Samsung |
Model |
F-IF020RM174 |
Series |
IFR Series |
Display Size |
174 inches |
Configuration |
4x4 Video Wall |
Display Type |
Direct-View LED |
Resolution |
3840 x 2160 (4K UHD) |
Pixel Pitch |
2.0 mm |
Brightness |
800 nits (Typical) |
Contrast Ratio |
5000:1 |
Aspect Ratio |
16:9 |
Viewing Angle |
160° Horizontal / 140° Vertical |
Refresh Rate |
3840 Hz |
Color Depth |
16-bit Processing |
Power Supply |
AC 100–240V, 50/60 Hz |
Power Consumption (Typical) |
800 W |
Operating Hours |
24/7 Continuous Operation |
Dimensions (W x H x D) |
151.8 x 85.4 x 2.5 in (Approx.) |
Weight |
418 lbs (Approx.) |
Mount Type |
Wall Mount / Custom Frame |
Special Features |
LED HDR, Calibration-Free Design, Seamless Edge Alignment |
