Product Overview

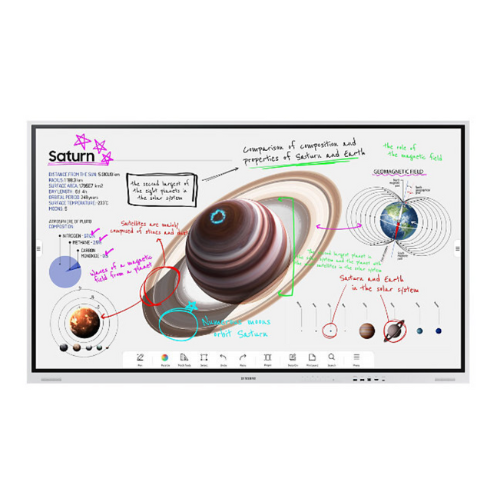

The Samsung WM75B Flip Pro is an interactive display with 4K UHD and 75 inches, designed to support the heavy workload of both education and business. It unites low-latency writing, sharing across multiple users with touch, and strong connectivity to facilitate dynamic collaboration in classrooms, boardrooms, and training rooms. The WM75B is a high-performance onboard operating system with built-in safety and life functions, and provides the choice to install it anywhere the organization wants it to create the interactive tier of the organization, as well as make managing technology easier.
Key Features and Benefits
Natural Writing and Drawing: The display supports fine strokes and gestures with 2,048 levels of pressure sensitivity, and only 26 ms latency, the display can feel like a flowing pen or a pencil.
Multi-Touch Collaboration: This has a limit of 20 simultaneous touches, and therefore, more than two users can touch the screen at a given time. Good at breakout work or teamwork.
Universal connectivity: has a USB-C connector, an HDMI port with DisplayPort, a USB-A port, and an OPS (Open Pluggable Specification) slot. The ease of connection of devices is made by wireless screen sharing (SmartView+), casting (AirPlay), and network options.
Inbuilt Educational and Interactive features: built-in pen and brush tool, palette and quick-tool interface, layered note taking, and the ability to support learning applications (e.g., MimioConnect) are a set of features that allow educators to deliver rich instruction without any external tools.
Protection and Safety Features: The screen has Shatterproof film, an antimicrobial surface, and solid construction. Such improvements are safer in busy locations.
Strong Hardware and performance: Operates on Tizen 6.5, and has a rich onboard memory and storage, as well as power management. The 75-inch VA display provides good display contrast and wide viewing areas, and the display can be seen and used regardless of the location within a room.
Technical Specifications
| Feature | Specification |
|---|---|
| Display Size (Diagonal) | 75″ |
| Resolution | 3,840 × 2,160 (4K UHD) |
| Panel Type | VA (Vertical Alignment) LCD |
| Brightness (Typical, without glass) | ~ 350 nits |
| Brightness (With Glass / Protective Screen) | ~ 220 nits |
| Contrast Ratio (Typical, without glass) | ~ 4,000:1 |
| Viewing Angles (H / V) | 178° / 178° |
| Response Time (G-to-G) | ~ 8 ms |
| Operation Duty Cycle | 16 / 7 (hours per day/days per week) |
| Touch Technology | Infrared (IR), 20 touch points, 2,048 pressure levels, ~ 26 ms latency |
| USB-C Port | 3-in-1 USB-C (video, touch input, device charging up to 65 W) |
| Other Inputs / Outputs | 2× HDMI, 1× DisplayPort, USB-A (front/rear), OPS slot, audio out, RS232, Ethernet, WiFi, Bluetooth |
| Operating System | Tizen 6.5 |
| Set Dimensions (W × H × D) | 1724 × 1026.3 × 89 mm (without stand) |
| Weight (Net / Without Packaging) | 59.3 kg |
| Power Supply | AC 100–240V, 50/60 Hz |
| Maximum Power Consumption (On Mode) | ~ 473 W |
| Standby Power | ~ 0.5 W |
| VESA Mount Pattern | 400 × 400 mm |
| Warranty | 5-year standard warranty |
Product Information
The WM75B Flip Pro is a compromise between very high interactivity and a very solid and durable design. Its 75-inch VA display screen can show 4K images with big viewing angles and hence can be used with a large audience in the classrooms or meeting places. The contrast (~ 4,000:1 without glass) and brightness of the panel (350 nits) give usable images in normal indoor light; in the presence of protective glass, of course, brightness decreases (approximately 220 nits).
Touch: The IR touch system has a maximum of 20 points of touch concurrently; it is highly sensitive to pressure (2048 levels) and has low latency (< 26ms). That is, pens, brushes, fingers, or palms all react naturally. Creation and sharing of the content is smooth with the help of software means such as pen/brush modes, palette/quick tool, multilayer note taking, and wireless mirroring of mobile devices using SmartView+ and AirPlay 2.
To be connected, the display has various input connections: HDMI, DisplayPort, USB-A, USB-C, and an OPS slot in case one needs more computing power. The audio output, network (wired and wireless), and management capabilities (MagicINFO, Knox, etc.) complete the presence of its applicability within the educational or collaborative space.
Physically, it is large with a size of 1724 x 1026 x 89 mm and a weight of 59.3 kg, which makes it huge and demanding in terms of planning how to mount it (VESA 400x400). Under load, power consumption is high (power draw, about 473 W), and thus, proper planning of power is required, though under standby, power consumption is low (about 0.5 W). The display has a 16-hour daily and 7-day weekly rating, which is enough to cover the entire school day, long meeting sessions, or even long training sessions, but not 24-hour signage with no planning.
It has shatter-proof protective film, antimicrobial coating, and a convenient front user control panel in terms of durability. The warranty is also high, and it is usually a 5-year warranty, which contributes to securing institutional investment.
