Product overview

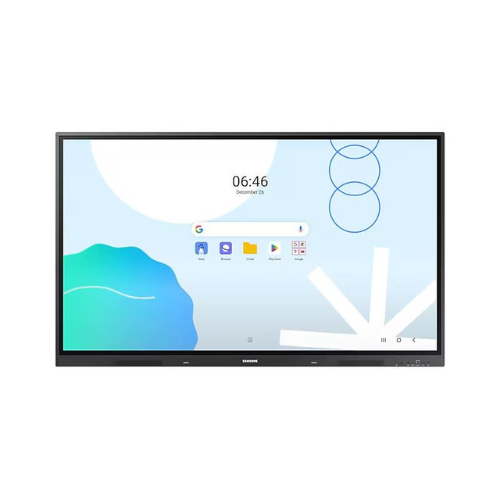

The Samsung WA75D is an app-ready interactive classroom, training room, and collaboration display with large format. Its 75 inch 4K UHD screen combines low-glare glass and a fast and accurate multi-touch to allow multiple individuals to write, draw, and annotate simultaneously with only a small amount of lag. An intuitive user interface, 2-way pens, and adaptable whiteboarding utilities enable one to navigate between notes, browser content and lesson material without disrupting the flow.
The WA75D has a compact system-on-chip that is powerful enough to execute applications and screen sharing without connecting to an external PC as well as a front USB-C connector that supports the display, touch, and device charging in a single cable. In-built speakers, Wi-Fi/Bluetooth, and an OPS expansion slot all single-handedly complete a neat, all-in-one package that can either be mounted to the wall or mounted on a cart.
Key features
-
4K UHD Temp-Glass 75in panel with low glare tempered glass that allows comfortable viewing.
-
Multi-user writing and dual-ended passive pens (fine tip/highlighter) Fast IR touch.
-
Single-cable display, touch and up to 65 W device charging (Front USB-C).
-
Multi-device wireless screen sharing with two-way casting.
-
The features to whiteboard, annotate anything, and capture/export content easily.
-
In-built speakers, wi-fi/bluetooth and OPS slot to expand clean PC.
-
Front and rear I/O with numerous HDMI connections as well as HDMI output to displays in the room.
-
Business operation using strong chassis and VESA mounting.
Technical specifications
|
Category |
Details |
|
Model |
WA75D (WAD Series) |
|
Screen size |
75″ diagonal |
|
Resolution |
3840 × 2160 (4K UHD), 60 Hz class |
|
Panel & glass |
Low-glare, hardened glass; anti-smudge finish |
|
Touch |
IR multi-touch, up to 20 points; low-latency inking; palm erase |
|
Pens |
Dual-ended passive pens (fine tip / highlighter) |
|
Speakers |
Integrated stereo (classroom-ready output) |
|
Front I/O |
USB-C (display + touch + up to 65 W charge), Touch Out |
|
Rear I/O |
HDMI in (×2–3), HDMI out (×1), USB (host), audio in/out, LAN (RJ-45), RS-232C |
|
Wireless |
Wi-Fi and Bluetooth (adapter/profile dependent) |
|
Screen sharing |
Multi-device wireless casting; two-way casting support |
|
Compute |
Integrated SoC; Android-based interface for apps and whiteboarding |
|
Expansion |
OPS slot for tidy PC add-on |
|
Operation |
Commercial duty (typical 16/7) |
|
Mounting |
VESA 800 × 400 mm; wall or cart installation |
|
Power |
100–240 V AC; power-saving and scheduling features |
|
Use cases |
Classrooms, training rooms, collaboration spaces, briefing centers |
