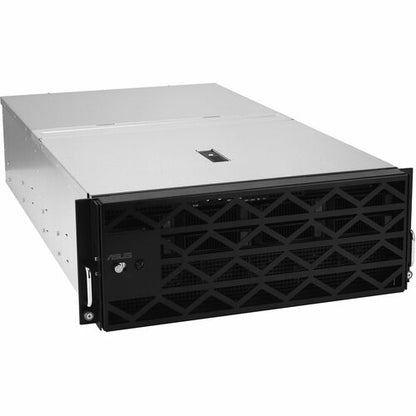

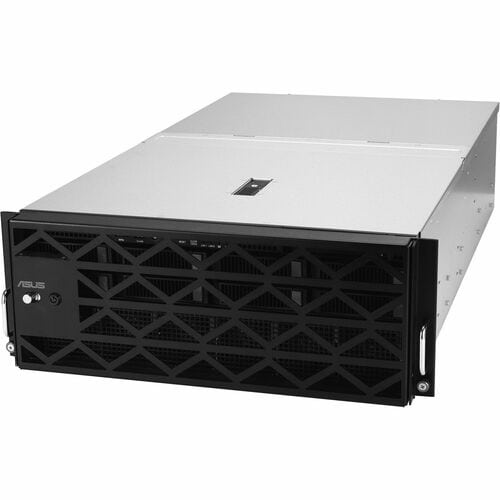

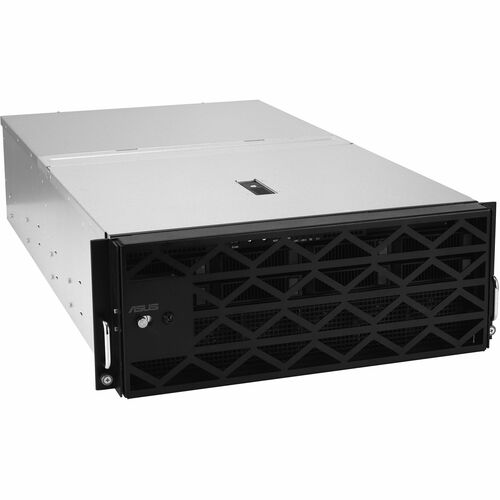

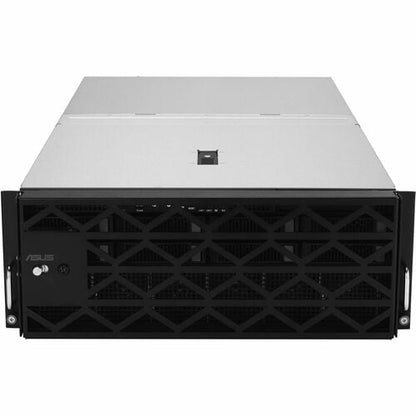

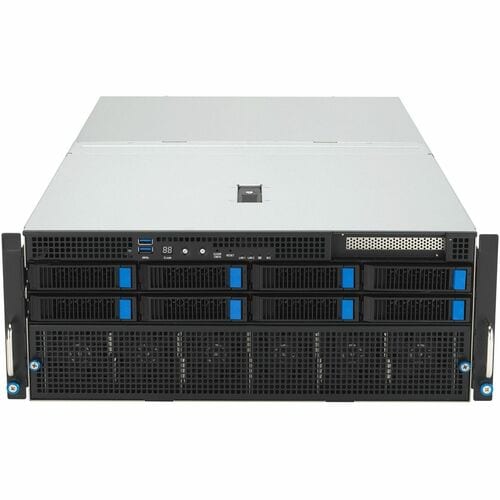

Accelerate performance for HPC and AI workloads | Eight dual-slot GPU compute in 4U

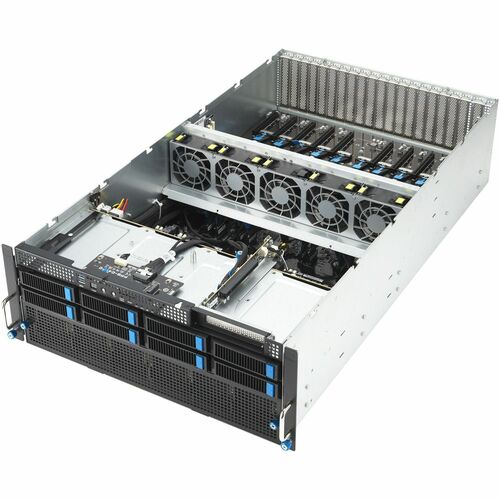

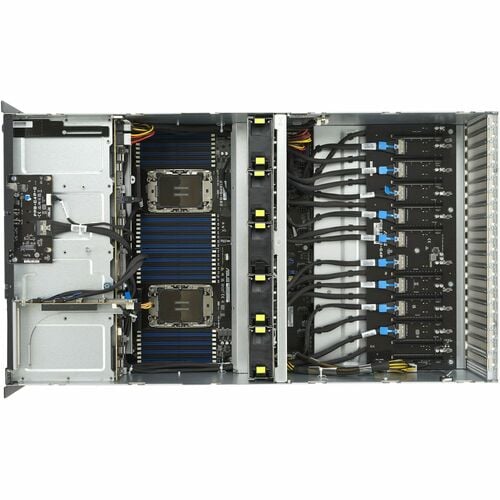

ESC8000-E11 is a dual-socket server powered by 5th Gen Intel® Xeon® Scalable Processors and built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs, faster GPU interconnect and higher-bandwidth fabric, and supports up to eight dual-slot active or passive GPUs scalable configuration with NVIDIA NVLink® Bridge to enable scaling of performance with increased bandwidth - ready to match your AI and HPC workloads.
Key Features
- Perform computational tasks effectively accrediting the Xeon Platinum processor
- With Serial ATA/600 interface get superb reliability and high-speed data transfer
- DDR5 SDRAM slot for convenient installation of memory
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- Connect USB-enabled devices via 2 USB ports
Dimensions
| Height | 15.55 inches |
|---|---|
| Width | 23.43 inches |
| Length | 43.82 inches |
| Weight | 115 pounds |
| Product Type | Barebone System |
| Maximum Memory Supported | 6 TB |
| Chipset | Intel |
| Form Factor | Rack-mountable |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Platinum |
| Controller Type | Serial ATA/600 |
| Controller Type | NVMe |
| Processor Socket | Socket LGA-4677 |
| Rack Height | 4U |
| Brand Name | Asus |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4400/PC5-35200 |
| Graphics Controller Model | AST2600 |
| Number of Processors Supported | 2 |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Gigabit Ethernet |

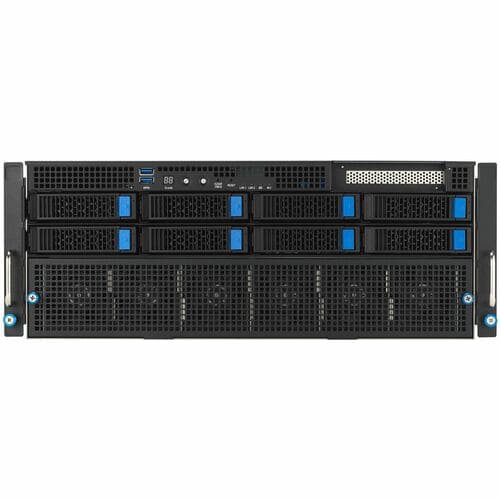

| Number of 3.5" Bays | 8 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 8 |
| Maximum Power Supply Wattage | 3000 W |
| Product Family | ESC8000-E11 |
| Total Number of USB Ports | 2 |
| Total Number of Expansion Slots | 11 |
| Total Number of Memory Slots | 32 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| AI-powered | Yes |
| Chipset Manufacturer | Intel |
| Controller Type | NVMe |
| Controller Type | Serial ATA/600 |
| Product Type | Barebone System |
| Manufacturer Part Number | ESC8000-E11-3W10G |
| Manufacturer Website Address | http://usa.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | ESC8000-E11-3W10G |
| Product Name | ESC8000-E11-3W10G Barebone System |
| Product Series | ESC8000-E11 |
| Brand Name | Asus |
| Number of Total Expansion Bays | 8 |
| Number of 3.5" Bays | 8 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 8 |
| Total Number of Expansion Slots | 11 |
| Number of M.2 Interfaces | 1 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of VGA Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Maximum Memory | 6 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4400/PC5-35200 |
| Total Number of Memory Slots | 32 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 59.52 lb |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.9" |
| Width | 17.3" |
| Depth | 31.5" |
| Number of Power Supplies Installed | 3 |
| Maximum Power Supply Wattage | 3000 W |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Bronze |
| Processor Socket | Socket LGA-4677 |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Gold |
| Processor Socket | Socket LGA-4677 |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
