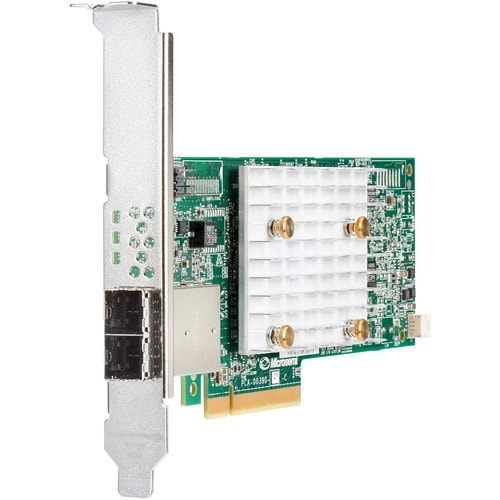

The HPE Smart Array P408e-p SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is ideal for maximizing performance on externally attached drives while supporting advanced RAID levels with 4 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight external SAS lanes, allowing connection to externally attached SAS or SATA drives, and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. This controller offers enhanced security by encrypting data-at-rest on any drive with HPE Smart Array SR Secure Encryption.
The Gen10 controllers are supported by the HPE Smart Storage Battery, which supports multiple devices and is sold separately
The Gen10 controllers are supported by the HPE Smart Storage Battery, which supports multiple devices and is sold separately
Dimensions
| Height | 2.5 inches |
|---|---|
| Width | 8.6 inches |
| Length | 9.8 inches |
| Weight | 0.7 pounds |
| Host Interface | PCI Express 3.0 x8 |
| Product Type | SAS Controller |
| Form Factor | Plug-in Card |
| RAID Levels | 0 |
| RAID Levels | 60 |
| RAID Levels | 5 |
| RAID Levels | 10 ADM |
| RAID Levels | 50 |
| RAID Levels | 6 |
| RAID Levels | 1 |
| RAID Levels | 1 ADM |
| RAID Levels | 10 |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA/600 |
| Brand Name | HPE |
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
| Product Type | SAS Controller |
| Manufacturer Part Number | 804405-B21 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | P408e-p |
| Product Name | Smart Array P408e-p SR Gen10 Controller |
| Product Line | Smart Array |
| Brand Name | HPE |
| Number of SAS Ports (External) | 8 |
| SAS Connector Details | 2 |
| Cache Memory | 4 GB |
| Form Factor | Plug-in Card |
| Host Interface | PCI Express 3.0 x8 |
| RAID Levels | 60 |
| RAID Levels | 6 |
| RAID Levels | 50 |
| RAID Levels | 5 |
| RAID Levels | 10 ADM |
| RAID Levels | 10 |
| RAID Levels | 1 ADM |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
