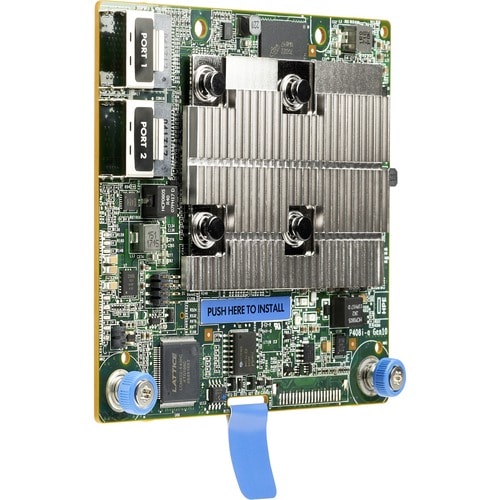

The HPE Smart Array P408i-a SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is ideal for maximizing performance while supporting advanced RAID levels with 2 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and offers encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs.
The Gen10 controllers are supported by the HPE Smart Storage Battery, which supports multiple devices and is sold separately.
The Gen10 controllers are supported by the HPE Smart Storage Battery, which supports multiple devices and is sold separately.
Key Features
- SAS Controller offers maximum storage productivity with added dependability
- The PCI Express 3.0 x8 interface provides smooth data transfer and outstanding performance
- 12Gb/s SAS controller type allows safe and productive storage expandability with maximum reliability
- 0 RAID level for better cost-effectiveness and easy implementation with minimal effort required
- Flash Backed Cache data backup type effectively restores and saves your valuable data in case of system damage
- 2 GB cache memory for convenient and quick access to the information to ensure maximum productivity
- Plug-in Module form factor for added reliability and dependability
- SAS Controller let you conveniently keep your files accessible at all times by turning your computer into a portable storage expansion drive
Dimensions
| Height | 2.5 inches |
|---|---|
| Width | 8.75 inches |
| Length | 9.9 inches |
| Weight | 0.65 pounds |
| Host Interface | PCI Express 3.0 x8 |
| Product Type | SAS Controller |
| Form Factor | Plug-in Module |
| Product Model | P408i-a |
| RAID Levels | 50 |
| RAID Levels | 6 |
| RAID Levels | 60 |
| RAID Levels | 10 ADM |
| RAID Levels | 5 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 1 ADM |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| Brand Name | HPE |
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
| Product Type | SAS Controller |
| Manufacturer Part Number | 869081-B21 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | P408i-a |
| Product Name | Smart Array P408i-a SR Gen10 Controller |
| Product Line | Smart Array |
| Brand Name | HPE |
| Number of SAS Ports (Internal) | 8 |
| SAS Connector Details | 2 |
| Cache Memory | 2 GB |
| Form Factor | Plug-in Module |
| Host Interface | PCI Express 3.0 x8 |
| RAID Levels | 50 |
| RAID Levels | 6 |
| RAID Levels | 60 |
| RAID Levels | 10 ADM |
| RAID Levels | 0 |
| RAID Levels | 1 ADM |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 1 |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
