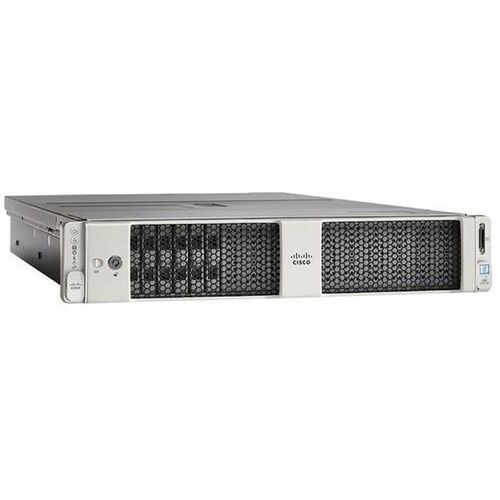

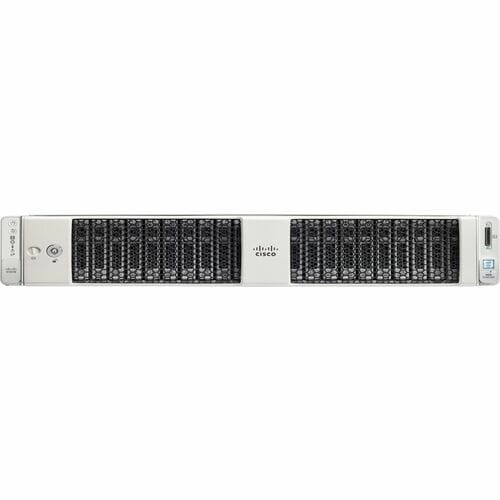

The UCS C240 M5 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666-MHz or 2933-MHz DIMMs with capacity points up to 128 GB, 2666-MHz PMEMs with capacity points up to 512 GB, up to 6 PCI Express (PCIe) 3.0 slots, and up to 12 front-facing internal LFF drives. The C240 M5 LFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® Persistent Memory Modules (PMEMs). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMEMs).
The C240 M5 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® Persistent Memory Modules (PMEMs). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMEMs).
The C240 M5 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Key Features
- Xeon Gold 2.40 GHz processor for performing computational tasks effectively
- RAID provides efficient data redundancy in the case of a drive failure to ensure maximum dependability
- 240 GB SSD provides ample space for important documents, files and critical data
- 2.40 GHz processor speed ensures optimal performance with fast and dependable results
- DDR4 SDRAM memory technology effectively enables data to be moved at various points in a CPU clock cycle to allow maximum productivity
- Tetracosa-core (24 Core) processor core allows multitasking with great reliability and fast processing speed
- 35.75 MB cache memory for dependable, fast retrieval of information to ensure maximum convenience and usability
- 2 processors supported for faster, dependable performance and better access to data and information
- 2nd Gen server generation offer more threads, higher clocks, thus giving an optimal and faster system performance
- 768 GB memory enables you for running more than one application and run intensive applications lag-free
Dimensions
| Product Type | Server |
| Maximum Memory Supported | 3 TB |
| Standard Memory | 768 GB |
| Chipset | Intel C621 |
| Form Factor | Rack-mountable |
| Processor Speed | 2.40 GHz |
| Processor Type | Xeon Gold |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA |
| Rack Height | 2U |
| Brand Name | Cisco |
| Memory Technology | DDR4 SDRAM |
| Processor Model | 6240R |
| Processor Core | Tetracosa-core (24 Core) |
| Redundant Power Supply | Yes |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| RAID Supported | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 25 Gigabit Ethernet |
| VGA | Yes |
| Maximum Power Supply Wattage | 1600 W |
| Product Family | C240 M5 |
| Total Solid State Drive Capacity | 240 GB |
| Limited Warranty Duration | 3 Year |
| Total Number of Memory Slots | 24 |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| Product Type | Server |
| Manufacturer Part Number | UCSSPC240M5CA |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C240 M5 Server |
| Product Series | C240 M5 |
| Brand Name | Cisco |
| Number of Internal 2.5" Bays | 2 |
| Number of Total Expansion Bays | 14 |
| Number of 3.5" Bays | 12 |
| Total Number of Expansion Slots | 6 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 2 |
| Number of LFF Bays | 12 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 3 |
| Number of USB 3.0 Ports | 3 |
| Number of VGA Ports | 1 |
| Error Checking | ECC |
| Maximum Memory | 3 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 768 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 12 |
| Total Number of Memory Slots | 24 |
| Weight (Approximate) | 66 lb |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 19" |
| Depth | 30.2" |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 1600 W |
| Processor Type | Xeon Gold |
| Processor Model | 6240R |
| Processor Core | Tetracosa-core (24 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Generation | 2nd Gen |
| Cache | 35.75 MB |
| Processor Speed | 2.40 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 6240R |
| Processor Core | Tetracosa-core (24 Core) |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Generation | 2nd Gen |
| Total Solid State Drive Capacity | 240 GB |
| Additional Warranty Information | Three-year parts coverage. |
