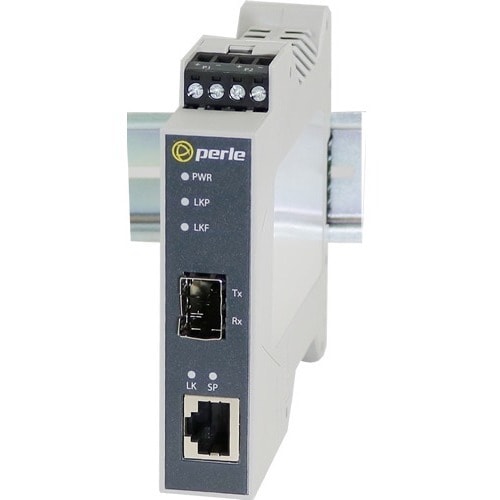

The Perle SR-1110-SFP is a robust, rate-converting media converter designed for transparently extending network distances and integrating copper and fiber optic segments. It features a flexible SFP slot, allowing for compatibility with a wide range of MSA-compliant SFP transceivers from Perle, Cisco, or other manufacturers. This DIN rail mountable converter is ideal for extending the reach of 10/100/1000Base-T Ethernet devices over fiber optic cabling, enhancing network infrastructure, and protecting data from electromagnetic interference (EMI) in industrial environments. An extended temperature variant (-40°C to +75°C) is also available for demanding conditions.
Dimensions
| Height | 1.2 inches |
|---|---|
| Width | 5.6 inches |
| Length | 4.1 inches |
| Weight | 0.25 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.10 km |
| Power Source | AC Adapter |
| Form Factor | Rail-mountable |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Network Technology | 100Base-X |
| Brand Name | Perle |
| Expansion Slot Type | SFP (mini-GBIC) |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05091960 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | SR-1110-SFP |
| Product Name | SR-1110-SFP Transceiver/Media Converter |
| Brand Name | Perle |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Maximum Distance Supported | 0.10 km |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Network Technology | 100Base-X |
| Weight (Approximate) | 4.23 oz |
| Height | 0.9" |
| Width | 4.5" |
| Depth | 3.9" |
