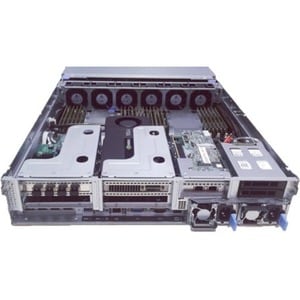

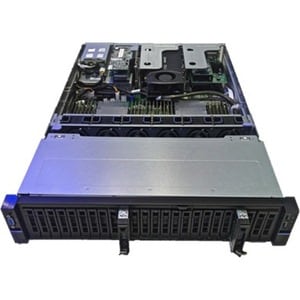

The Western Digital Ultrastar Serv24 SVR2U24 is a 2U performance-optimized storage server engineered for demanding, storage-intensive applications and software-defined storage (SDS) environments. By integrating high-performance Intel® Xeon® CPUs and NVMe™ SSDs within a single unit, it provides a robust and validated building block for deploying SDS stacks with exceptional speed. Designed for "Fast Data," this server leverages cutting-edge flash technology and NVMe capabilities to deliver low latency and consistently high bandwidth, accelerating data access to the speed of flash. It offers customization options for CPU chipset, core count, and power to tailor performance to specific data workloads. Whether utilized as a standalone file server or integrated into a scale-out SDS architecture, the Ultrastar Serv24 is built to deliver superior performance and efficiency.
Dimensions
| Product Type | NAS Storage System |
| Standard Memory | 256 GB |
| Form Factor | Rack-mountable |
| Processor Speed | 2.30 GHz |
| Processor Type | Xeon Gold |
| Rack Height | 2U |
| Brand Name | HGST |
| Expansion Slot Type | PCI Express x8 |
| Expansion Slot Type | PCI Express x16 |
| Processor Manufacturer | Intel |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| Number of Total Expansion Slots | 3 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 1200 W |
| Product Family | Ultrastar Serv24 |
| Total Number of USB Ports | 2 |
| Total Solid State Drive Capacity Installed | 38.40 TB |
| Number of 2.5" Bays | 24 |
| Limited Warranty Duration | 5 Year |
| Product Type | NAS Storage System |
| Manufacturer Part Number | 1ES1009 |
| Manufacturer Website Address | http://www.wdc.com |
| Manufacturer | Western Digital Corporation |
| Product Name | Ultrastar Serv24 NAS Storage System |
| Product Line | Ultrastar Serv24 |
| Brand Name | HGST |
| Expansion Slot Type | PCI Express x8 |
| Expansion Slot Type | PCI Express x16 |
| Number of Total Expansion Bays | 24 |
| Number of 2.5" Bays | 24 |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Standard Memory | 256 GB |
| Ethernet Technology | 10 Gigabit Ethernet |
| Weight (Approximate) | 54.90 lb |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 29.9" |
| Maximum Power Supply Wattage | 1200 W |
| Processor Speed | 2.30 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 6140 |
| Processor Core | Octadeca-core (18 Core) |
| Processor Manufacturer | Intel |
| Total Solid State Drive Capacity Installed | 38.40 TB |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 24 |
| Number of Boot Drives | 2 |
