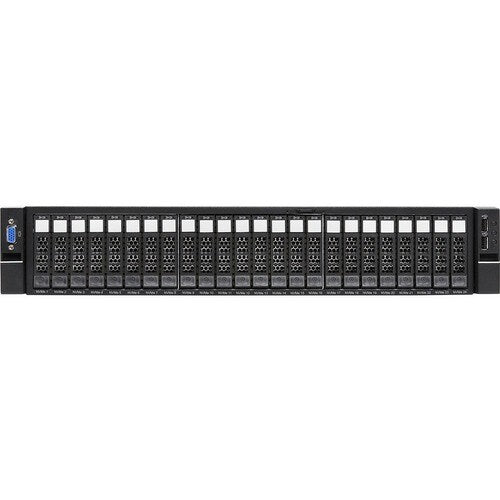

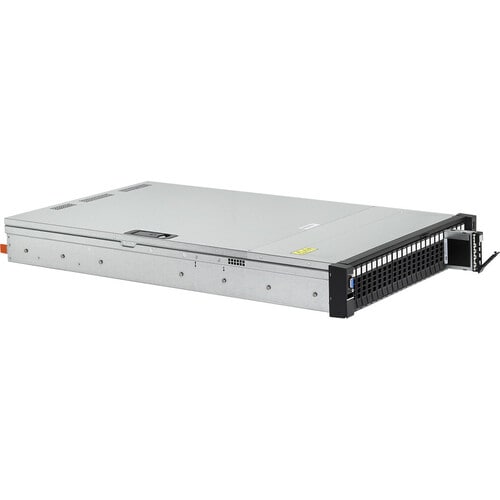

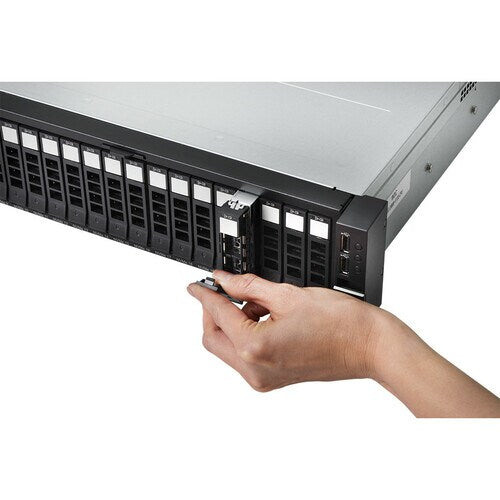

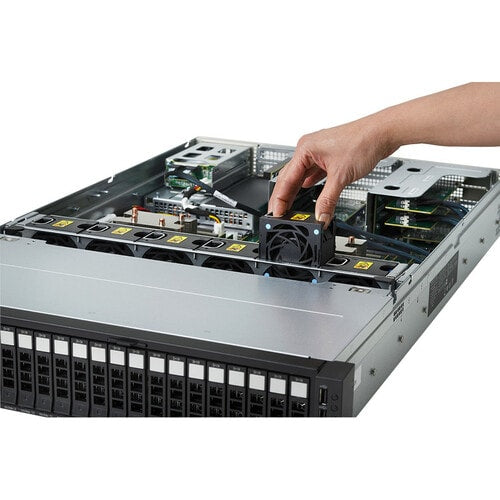

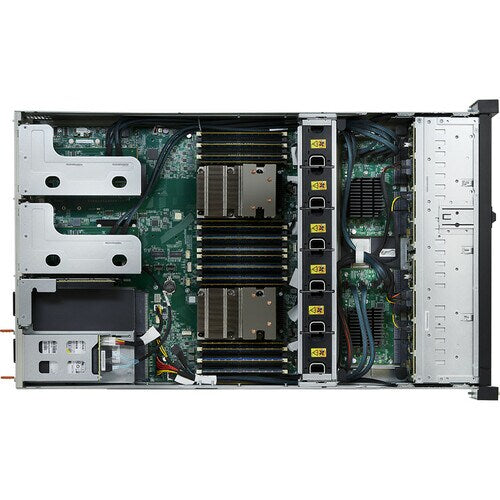

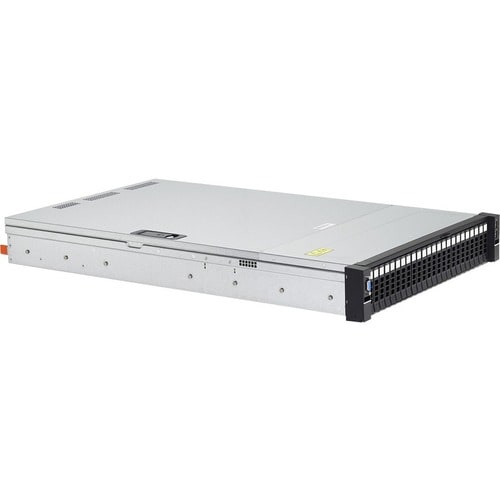

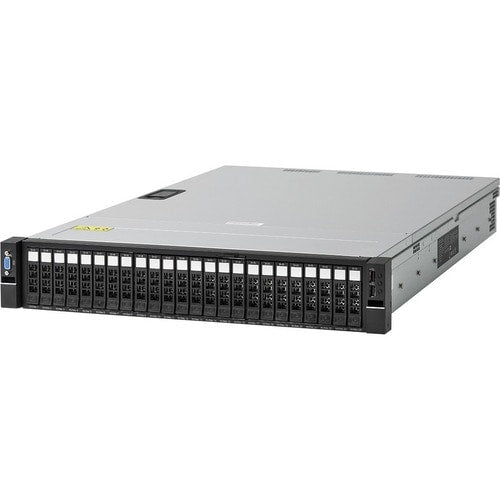

The Ultrastar® Serv24 is a performance-optimized storage server engineered to meet the ever-increasing demands of data center storage-intensive applications, particularly for Software-Defined Storage (SDS) deployments. This integrated platform combines the processing power of Intel® Xeon® CPUs with the ultra-low latency and high bandwidth of NVMe™ SSDs within a single, tested, and validated building block. Designed for rapid data access, the Serv24 leverages the full potential of flash technology, delivering exceptional performance for both standalone file server roles and large-scale, distributed SDS environments. Its architecture is tailored to accelerate data to the speed of flash, ensuring consistently high throughput and minimal latency, making it ideal for accelerating critical workloads.
Dimensions
| Product Type | NAS Storage System |
| Standard Memory | 256 GB |
| Form Factor | Rack-mountable |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Platinum |
| Controller Type | NVMe |
| Rack Height | 2U |
| Brand Name | HGST |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Expansion Slot Type | PCI Express 3.0 x16 |
| Processor Manufacturer | Intel |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| Number of Total Expansion Slots | 3 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 1200 W |
| Product Family | Ultrastar Serv24 |
| Total Number of USB Ports | 2 |
| Total Solid State Drive Capacity Supported | 184 TB |
| Total Solid State Drive Capacity Installed | 46.08 TB |
| Number of 2.5" Bays | 24 |
| Drive Interface | PCI Express |
| Limited Warranty Duration | 5 Year |
| Controller Type | NVMe |
| Product Type | NAS Storage System |
| Manufacturer Part Number | 1ES1019 |
| Manufacturer Website Address | http://www.wdc.com |
| Manufacturer | Western Digital Corporation |
| Product Model | SS2U24PUR-1015 |
| Product Name | Ultrastar Serv24 SS2U24PUR-1015 NAS Storage System |
| Product Line | Ultrastar Serv24 |
| Brand Name | HGST |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Expansion Slot Type | PCI Express 3.0 x16 |
| Number of Total Expansion Bays | 24 |
| Number of 2.5" Bays | 24 |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Drive Interface | PCI Express |
| Standard Memory | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Ethernet Technology | 10 Gigabit Ethernet |
| Weight (Approximate) | 54.90 lb |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 29.9" |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 1200 W |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Platinum |
| Processor Model | 8160 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Manufacturer | Intel |
| Total Solid State Drive Capacity Supported | 184 TB |
| Total Solid State Drive Capacity Installed | 46.08 TB |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 24 |
| Number of Boot Drives | 2 |
