Product overview

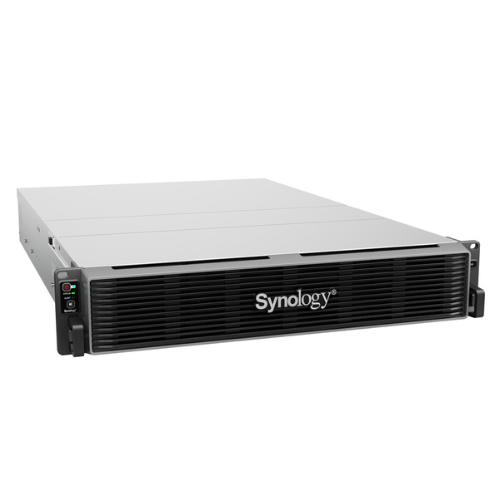

The Synology ActiveProtect DP7400 is a specifically created backup equipment that is pre-assembled to defend your whole environment; virtual machines, SaaS, databases, and physical servers without assembling individual hardware and software. It consolidates backup, deduplication, replication, and recovery processes on a hardened platform to simplify deployment to such an extent that you can begin securing data within a few minutes.
The DP7400, which is scalable, can support up to 2,500 servers and 150,000 workloads in clustered environments with only one, policy-driven interface. The features that make the ransomware resistant, like immutability, WORM storage option, and air-gapped copies are useful to protect your backups, and verification drills and Btrfs self-healing are used to guarantee the validity of your recovery plans when you actually require them.
Key features
-
Turnkey backup platform and source side deduplication across the globe.
-
Multi-site cluster policy management.
-
Ransomware resilience immutability, WORM, encryption, and air-gap.
-
Flexible restore: bare-metal restoration, file-level restoration, P2P/V2P and instant restoration of VMs.
-
Audit preparedness Backup verification and sandboxed DR drill videos.
-
Btrfs checksums, which are RAID self-healing to recognize and fix silent corruption.
-
AMD EPYC 12 cores, SSD metadata cache and 2 10GbE data ports.
-
2U with optional higher-speed NICs with redundant PSUs and expansion slots.
Technical specifications
|
Category |
Details |
|
Model |
DP7400 |
|
Role & scale |
Manages up to 2,500 servers and 150,000 workloads in a cluster |
|
Suggested backup source |
~83.5 TB |
|
Built-in restored VMs |
Up to 9 (expandable to 17 with additional memory) |
|
Form factor |
2U rackmount |
|
CPU |
AMD EPYC 7272, 12-core, 2.9 GHz (boost up to 3.2 GHz) |
|
Memory |
64 GB installed (max 512 GB) |
|
Storage configuration |
10 × 20 TB HDD (RAID 6 + 1 spare); 2 × 3.84 TB SSD (RAID 1 for metadata/cache) |
|
Network (standard) |
1 × 1GbE RJ-45 management; 2 × 10GbE RJ-45 data |
|
Network (optional) |
PCIe expansion for 2 × 10GbE RJ-45 or 25GbE SFP28 |
|
Data integrity |
Btrfs with checksums and self-healing via RAID |
|
Security |
Access controls with AD/LDAP/SAML SSO + MFA; firewalling; isolation options |
|
Ransomware defenses |
Immutability, WORM storage, encryption, air-gapped copies |
|
Recovery options |
Bare-metal, file-level, P2V, V2V, instant VM restore |
|
Dimensions |
88 × 430.5 × 692 mm (chassis); 88 × 482 × 724 mm with handles |
|
Weight |
23.4 kg |
|
Power |
100–240 V AC, 50/60 Hz; redundant PSUs |
|
Typical power |
~163 W (access) |
|
Thermal |
~557 BTU/hr (access) |
|
Operating range |
0–35 °C; 8–80% RH (non-condensing) |
|
Package contents |
DP7400 main unit; 10 × 3.5″ SATA HDD; 2 × 2.5″ SATA SSD; power cords; front cover; accessory pack; quick start guide |
|
Warranty |
5 years |
