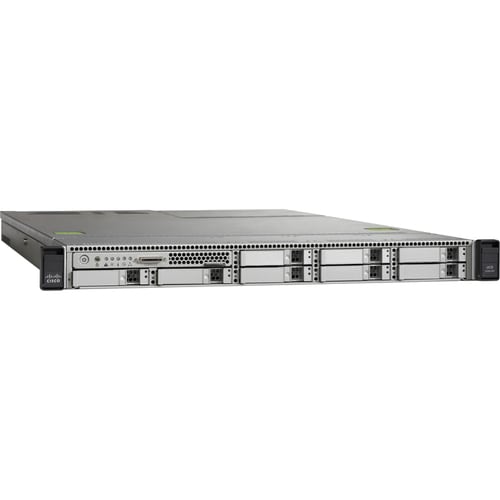

The Cisco UCS C220 M3 rack server is designed for performance and density over a wide range of business workloads from web serving to distributed database.
Building on the success of the Cisco UCS C200 M2 rack server, the enterprise-class UCS C220 M3 server further extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel E5-2600 series product family CPUs that deliver significant performance and efficiency gains. In addition, the UCS C220 M3 server provides 16 DIMM slots, four 3.5-inch drives and 2 x 1 GbE LOM ports delivering outstanding levels of density and performance in a compact package.
Key Features
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
- With Serial ATA/300 interface get superb reliability and high-speed data transfer
- DDR3 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Can connect up to 2 USB peripherals
Dimensions
| Height | 39.15 inches |
|---|
| Product Type | Barebone System |
| Limited Warranty | 3 Year |
| Chipset | Intel C600 |
| Form Factor | Rack-mountable |
| Processor Supported | Xeon |
| RAID Levels | 0, 1, 10 |
| Controller Type | Serial ATA/300 |
| Processor Socket | Socket R LGA-2011 |
| Rack Height | 1U |
| Brand Name | Cisco |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Graphics Controller Model | G200e |
| Number of SATA Interfaces | 4 |
| Graphics Memory Capacity | 256 MB |
| Graphics Memory Accessibility | Shared |
| Number of Processors Supported | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Number of 3.5" Bays | 4 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of USB Ports | 2 |
| Total Hard Drive Capacity Supported | No |
| Total Number of Expansion Slots | 2 |
| Total Number of Memory Slots | 16 |
| Chipset Manufacturer | Intel |
| Chipset Model | C600 |
| RAID Levels | 0, 1, 10 |
| Controller Type | Serial ATA/300 |
| RAID Supported | Yes |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSC-C220-M3L |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | C220 M3 |
| Product Name | C220 M3 Barebone System |
| Brand Name | Cisco |
| Number of 3.5" Bays | 4 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of Expansion Slots | 2 |
| Number of SATA Interfaces | 4 |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports | 2 |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Memory Card Reader | Yes |
| Total Number of Memory Slots | 16 |
| Package Contents |
|
| Weight (Approximate) | 23.40 lb |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 16.9" |
| Depth | 29.7" |
| Processor Supported | Xeon |
| Processor Socket | Socket R LGA-2011 |
| Processor Technology | vPro Technology |
| Processor Technology | Enhanced SpeedStep Technology |
| Processor Technology | Trusted Execution Technology |
| Processor Technology | Virtualization Technology |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| QuickPath Interconnect Supported | Yes |
| Processor Supported | Xeon |
| Processor Socket | Socket R LGA-2011 |
| Processor Technology | vPro Technology |
| Processor Technology | Enhanced SpeedStep Technology |
| Processor Technology | Trusted Execution Technology |
| Processor Technology | Virtualization Technology |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C600 |
| QuickPath Interconnect | 8 GT/s |
| Number of Processors Supported | 2 |
| QuickPath Interconnect Supported | Yes |
| Total Hard Drive Capacity Supported | No |
| Limited Warranty | 3 Year |
