Product Overview

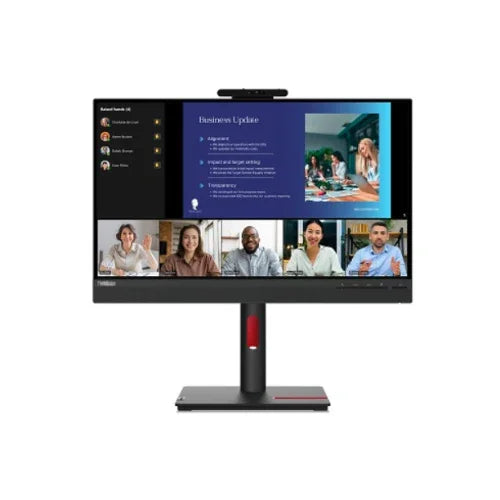

Lenovo ThinkCentre Tiny-In-One 24 Gen 5 (12NBGAR1US) is a 23.8-inch touchscreen monitor that has been designed to meet the demands of the professional who requires the flexibility, efficiency and smooth modular integration. This monitor is equipped to easily fit with the Lenovo Tiny PCs to provide a smooth all-in-one workspace and is therefore suitable in any business office, in educational institutions, and in working stations where desk area and flexibility are very important. Its touch interface and ergonomic accommodations make the TIO 24 Gen 5 more productive and the setup is clean and straightforward.
Key Features and Benefits
-
Touch Interaction - Scroll, navigate and interact accurately through the 10-point capacitive touchscreen.
-
Sharp Visuals - Built-in Full HD, a 23.8-inch IPS display with uniform colors and a broad range of viewing angles.
-
A Built-in Speakers and Privacy shielded Web Camera - Built-in speakers and an integrated privacy shielded web camera conferencing and multimedia without clutter.
-
Ergonomic Flexibility - Tilt and swivel to make your workplace more comfortable and productive.
-

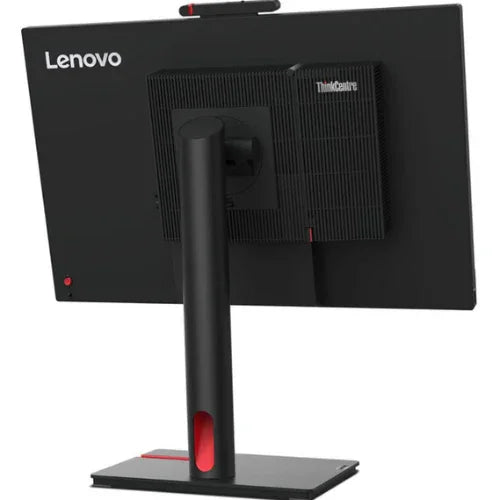

Modular Design - Lenovo Tiny PC can be snapped onto the rear to form a clean, compact all-in-one.
-
Effectiveconnectivity - It has several ports such as HDMI, DisplayPort, and USB, that offer a flexible peripheral and device connection.
Technical Specifications
Feature |
Specification |
Display |
23.8" Full HD (1920 x 1080) IPS panel with anti-glare coating |
Touch |
10-point capacitive touch support |
Brightness |
250 nits |
Response Time |
4 ms (Extreme mode) |
Ports |
HDMI 1.4, DisplayPort 1.2, USB 3.2 Gen 1 Type-B & Type-A |
Audio |
Integrated speakers and microphone |
Webcam |
Built-in with privacy shutter |
Ergonomics |
Height, tilt, and swivel adjustments |
Power Consumption |
Typical 14W |
Warranty |
3-year base warranty |
Product Information
The ThinkCentre Tiny-In-One 24 Gen 5 integrates both functionality and design to produce a workstation that is efficient and stylish. It features a Full HD IPS display, making it viewable and color reproduction as sharp and consistent, even when viewing the screen at wide angles, and the 10-point touch interface can make the interactions with the screen fluid and responsive. The built-in audio and webcam feature of the monitor provides an easy method of communication and teamwork and is ideal for use during a meeting or distance learning.
The monitor is ergonomically designed to provide the comfort of long working periods, as it can be adjusted in terms of height, tilt, and swivel. The back is supported by its modular Tiny PC mount to hold compatible Lenovo systems in place without cluttering the workspace and allowing it to be better organized. Various connectivity features, such as DisplayPort, HDMI, and USB ports, offer the flexibility of peripheral connectivity to meet the demands of professionals.
The monitor is an excellent solution to work in the setting when productivity and clean, organized layouts are important to the environment, as it is a monitor capable of being combined with other multimedia devices to achieve a coherent design.
Speakers | Yes |
Number of Speakers | 2 |
Aspect Ratio | 16:9 |
Response Time | 4 ms |
Speakers | Yes |
Touchscreen Type | Capacitive |
Brightness | 250 Nit |
Color Supported | 16.7 Million Colors |
Viewable Screen Size | 23.8" |
Maximum Resolution | 1920 x 1080 |
Brand Name | Lenovo |
Screen Mode | Full HD |
Placement | Tabletop |
Environmentally Friendly | Yes |
Environmental Certification | TCO Certified Edge Displays 2.0 |
Standard Refresh Rate | 60 Hz |
USB | Yes |
HDMI | Yes |
Webcam | Yes |
Backlight Technology | WLED |
DisplayPort | Yes |
Product Family | ThinkCentre |
Multi-touch Screen | Yes |
Panel Technology | In-plane Switching (IPS) Technology |
Energy Star | Yes |
Screen Size Class | 24" |
Stand Adjustments | Pivot |
Stand Adjustments | Tilt |
Stand Adjustments | Swivel |
Stand Adjustments | Height |
Response Time Details | 4ms Extreme Mode |
TCO Certified | Yes |
Energy Efficiency Certification | ENERGY STAR 8.0 |
Microphone | Yes |
Webcam | Yes |
Product Type | LED Touchscreen Monitor |
Manufacturer Part Number | 12NBGAR1US |
Manufacturer Website Address | http://www.lenovo.com/us/en/ |
Manufacturer | Lenovo Group Limited |
Product Model | Tiny-In-One |
Product Name | ThinkCentre Tiny-In-One 24 Inch Gen 5 Touch Monitor |
Product Line | ThinkCentre |
Brand Name | Lenovo |
USB | Yes |
HDMI | Yes |
Number of USB Ports | 2 |
DisplayPort | Yes |
Number of DisplayPorts | 1 |
Total Number of HDMI Ports | 1 |
Package Contents |
|
Compatibility | Operating System:
|
Environmentally Friendly | Yes |
Environmental Certification | TCO Certified Edge Displays 2.0 |
Energy Star | Yes |
TCO Certified | Yes |
Energy Efficiency Certification | ENERGY STAR 8.0 |
Weight (Approximate) | 8.82 lb |
Height | 14.5" |
Width | 21.3" |
Depth | 2.9" |
Weight with Stand (Approximate) | 13.89 lb |
Height with Stand | 21.24" |
Width with Stand | 21.25" |
Depth with Stand | 8.17" |
Operating Power Consumption | 34 W |
Maximum Power Consumption | 34 W |
Touchscreen Type | Capacitive |
Multi-touch Screen | Yes |
Color Supported | 16.7 Million Colors |
Maximum Resolution | 1920 x 1080 |
Standard Refresh Rate | 60 Hz |
Native Contrast Ratio | 1,000:1 |
Color Gamut | 99% sRGB |
Aspect Ratio | 16:9 |
Features | VoIP Controls |
Features | sRGB |
Features | Low Blue Light |
Features | Eye Comfort Technology |
Features | Cable Lock Slot |
Viewable Screen Size | 23.8" |
Screen Mode | Full HD |
Horizontal Viewing Angle | 178° |
Vertical Viewing Angle | 178° |
Backlight Technology | WLED |
Panel Technology | In-plane Switching (IPS) Technology |
Screen Size Class | 24" |
Stand Adjustments | Height |
Stand Adjustments | Swivel |
Stand Adjustments | Pivot |
Stand Adjustments | Tilt |
