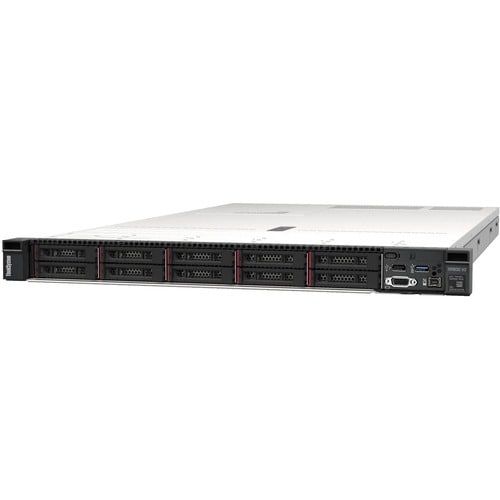

The Lenovo Think System SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Key Features
- With 32 GB memory, you can multitask between applications smoothly
- Xeon Silver processor offers maximum productivity in a timely efficient manner
- No HDD capacity allows maximum efficiency and abundant space
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 10, JBOD)
- 2.80 GHz processor speed for efficient performance with maximum reliability
- TruDDR4 memory technology effectively enables data to be moved at various points in a CPU clock cycle to allow maximum productivity
- No optical drive offers convenient media playing, writing, and recording
- Octa-core (8 Core) processor core allows multitasking with great reliability and fast processing speed
- 12 MB cache memory makes data and information immediately available for your convenience to ensure maximum efficiency
- 2 processors supported for faster, dependable performance and better access to data and information
Dimensions
| Product Type | Server |
| Maximum Memory Supported | 8 TB |
| Standard Memory | 32 GB |
| Operating System | No |
| Chipset | Intel C621A |
| Form Factor | Rack |
| Processor Speed | 2.80 GHz |
| Processor Type | Xeon Silver |
| RAID Levels | 0, 1, 5, 10, JBOD |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| Rack Height | 1U |
| Brand Name | Lenovo |
| Memory Technology | TruDDR4 |
| Processor Model | 4309Y |
| Processor Core | Octa-core (8 Core) |
| Environmentally Friendly | Yes |
| Optical Drive Type | No |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Total Hard Drive Capacity | No |
| RAID Supported | Yes |
| Ethernet Technology | Gigabit Ethernet |
| VGA | Yes |
| Maximum Power Supply Wattage | 750 W |
| Product Family | ThinkSystem SR630 V2 |
| Energy Star | Yes |
| Limited Warranty Duration | 3 Year |
| Total Number of Memory Slots | 32 |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| RAID Levels | 0, 1, 5, 10, JBOD |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | Intel RSTe RAID |
| Product Type | Server |
| Manufacturer Part Number | 7Z71A05HNA |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7Z71A05HNA |
| Product Name | ThinkSystem SR630 V2 7Z71A05HNA Server |
| Product Line | ThinkSystem |
| Product Series | SR630 V2 |
| Brand Name | Lenovo |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
| Error Checking | ECC |
| Maximum Memory Supported | 8 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 32 |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Operating System | No |
| Weight (Approximate) | 57.98 lb |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 30.4" |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| Processor Type | Xeon Silver |
| Processor Model | 4309Y |
| Processor Core | Octa-core (8 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Cache | 12 MB |
| Processor Speed | 2.80 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4309Y |
| Processor Core | Octa-core (8 Core) |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Operating System | No |
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
