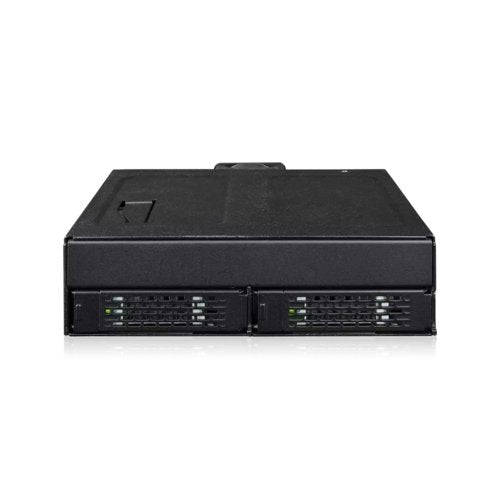

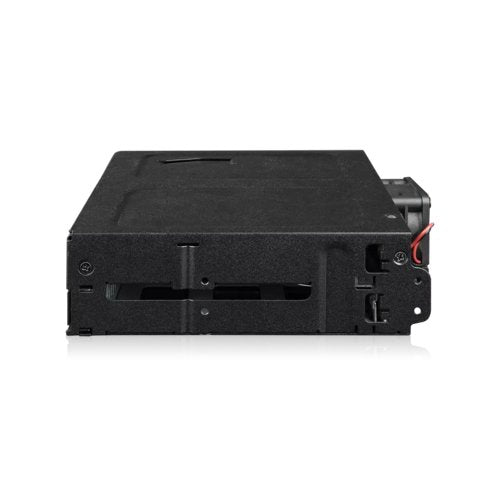

The MB105VP-B is a 5.25-inch full-metal removable dual U.2/U.3 NVMe PCIe 4.0 SSD mobile rack enclosure, supporting up to 64Gbps data transfer speeds through Slimline SAS (SFF-8654-8i).
Key Features

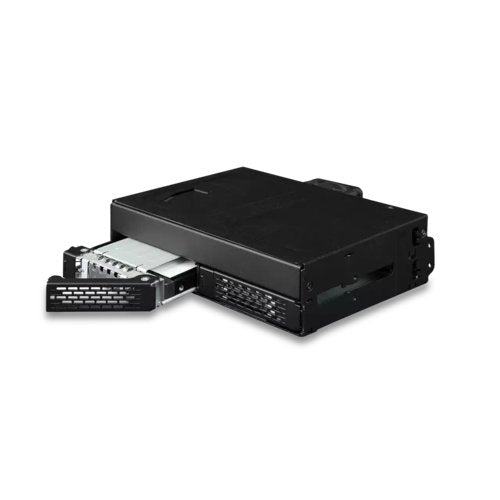

- The MB105VP-B is equipped with 2 EZ Slide Mini removable full-metal drive trays supporting from 7mm-15mm drive height, making drive maintenance a more efficient and straightforward process.

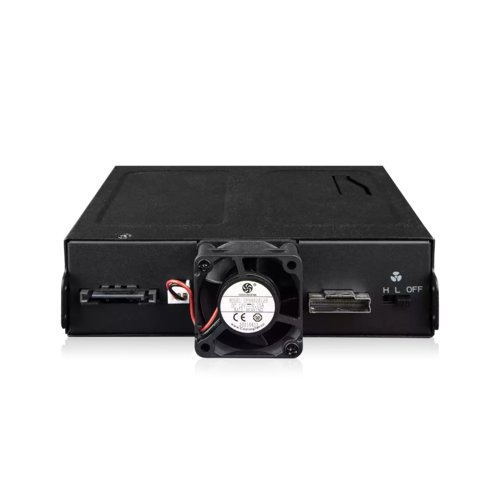

- The built-in rear cooling fan effectively blows away the heat generated by the U.2/U.3 SSDs through the ventilation holes. The fans can adjust between three fan settings: Hi, Low and Off.
- The additional cooling space above the drive trays allows the cooling fan to exhaust the drive heat more efficiently to prevent the drive from overheating.
- The MB105VP-B connects 2 x U.2/U.3 SSD with only a single Slimline-SAS (SFF-8654-8i) to reduce cable clutter while offering NVMe 4.0 transfer speeds up to 64Gbps per drive bay.
- The MB105VP-B is compatible with motherboards, RAID/HBA cards, and M.2 adapters. This compatibility gives you the freedom to choose from a wide range of hardware options.
Dimensions
| Height | 2.25 inches |
|---|---|
| Width | 6.2 inches |
| Length | 7.05 inches |
| Weight | 1.65 pounds |
| Host Interface | SFF-8654 SlimSAS |
| Product Type | Drive Enclosure |
| Form Factor | Internal |
| Product Line | ToughArmor |
| Brand Name | Icy Dock |
| Wireless LAN | No |
| Compatible Drive Bay Width | 5.25" |
| Number of Total Expansion Bays | 2 |
| Number of 2.5" Bays | 2 |
| Drive Interface | PCI Express NVMe 4.0 |
| Drive Interface | U.2 |
| Drive Interface | U.3 |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | MB105VP-B |
| Manufacturer Website Address | http://www.icydock.com |
| Manufacturer | Icy Dock |
| Product Model | MB105VP-B |
| Product Name | ToughArmor MB105VP-B |
| Product Line | ToughArmor |
| Brand Name | Icy Dock |
| Number of Total Expansion Bays | 2 |
| Number of 2.5" Bays | 2 |
| Hot Swappable Bays | Yes |
| Host Interface | SFF-8654 SlimSAS |
| Drive Interface | PCI Express NVMe 4.0 |
| Drive Interface | U.2 |
| Drive Interface | U.3 |

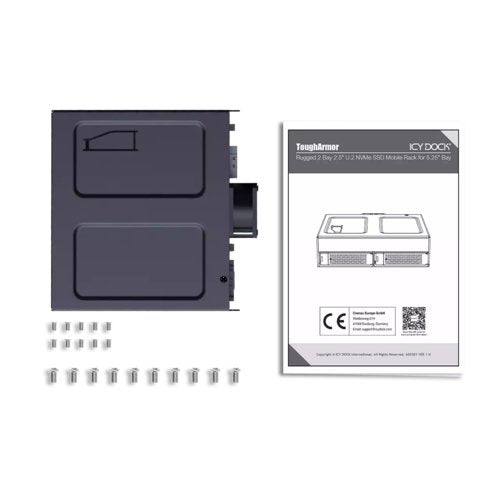

| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Wireless LAN | No |
| Weight (Approximate) | 1.47 lb |
| Form Factor | Internal |
| Height | 1.6" |
| Width | 5.9" |
| Depth | 5.7" |
| Compatible Drive Bay Width | 5.25" |
| Cooling Fan | Yes |
| Product Color | Black |
| Color Family | Black |
| Limited Warranty | 5 Year |
| Number of Solid State Drive Supported | 2 |
| Number of Solid State Drive Installed | 0 |
