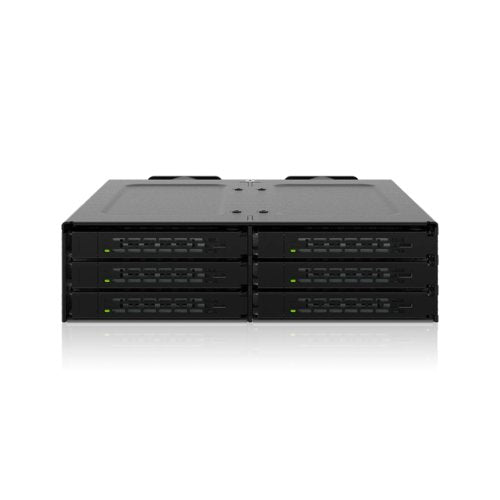

The MB118VP-B is a six-bay enclosure designed for U.2/U.3 NVMe SSDs. It supports drives up to 9.5mm in height and offers PCIe 4.0 speed, and up to 64Gb/s via its SlimSAS (SFF-8654).
Key Features

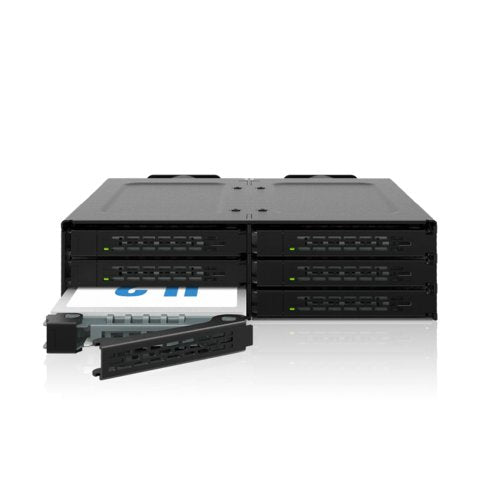

- The MB118VP-B is equipped with removable drive trays that make drive installation and removal quick and simple. Additionally, installed cooling fans maintain optimal temperatures.
- The MB118VP-B brings your drives to the front 5.25" bay, utilizing removable drive trays for hassle-free maintenance, compatible with standard U.2/U.3 SSDs up to 9.5mm in height
- The ToughArmor MB118VP-B is equipped with SlimSAS 8i (SFF-8654) connectors, each drive in the enclosure can achieve transfer speeds of up to 64Gb/s.

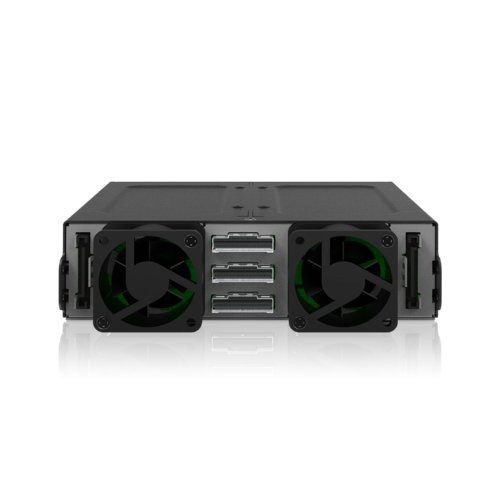

- The MB118VP-B can effectively dissipate the heat generated by U.2/U.3 SSDs through ventilation holes throughout the entire enclosure, which allow the heat to disperse evenly.
- Innovative EMI grounding technology ensures that once the drive is in the tray, it remains constantly grounded throughout the tray and housing, protecting against electrical damage.
Dimensions
| Height | 2.2 inches |
|---|---|
| Width | 6.2 inches |
| Length | 7 inches |
| Weight | 2.15 pounds |
| Host Interface | SFF-8654 SlimSAS |
| Product Type | Drive Enclosure |
| Form Factor | Internal |
| Brand Name | Icy Dock |
| Compatible Drive Bay Width | 5.25" |
| Number of Total Expansion Bays | 6 |
| Number of 2.5" Bays | 6 |
| Drive Interface | U.3 |
| Drive Interface | PCI Express NVMe 4.0 x4 |
| Drive Interface | U.2 |
| Product Color | Black |
| Color Family | Black |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | MB118VPB |
| Manufacturer Website Address | http://www.icydock.com |
| Manufacturer | Icy Dock |
| Product Model | CP097 |
| Product Name | 6 x 2.5" NVMe U.2/U.3 SSD PCIe 4.0 Mobile Rack for 5.25" Bay with SlimSAS |
| Brand Name | Icy Dock |
| Number of Total Expansion Bays | 6 |
| Number of 2.5" Bays | 6 |
| Host Interface | SFF-8654 SlimSAS |
| Drive Interface | PCI Express NVMe 4.0 x4 |
| Drive Interface | U.2 |
| Drive Interface | U.3 |

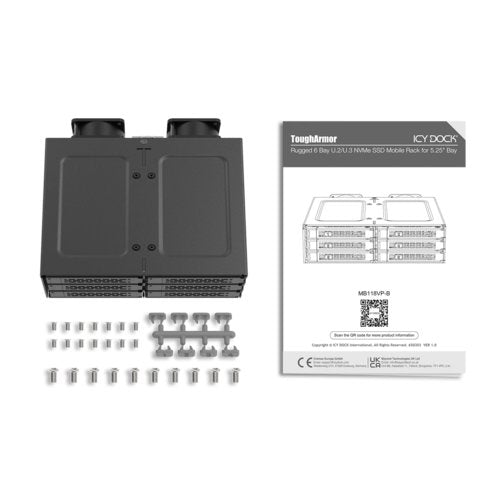

| Package Contents |
|
| Weight (Approximate) | 1.98 lb |
| Form Factor | Internal |
| Height | 1.6" |
| Width | 5.7" |
| Depth | 5.6" |
| Compatible Drive Bay Width | 5.25" |
| Cooling Fan | Yes |
| Product Color | Black |
| Color Family | Black |
| Number of Solid State Drive Supported | 6 |
| Number of Solid State Drive Installed | 0 |
