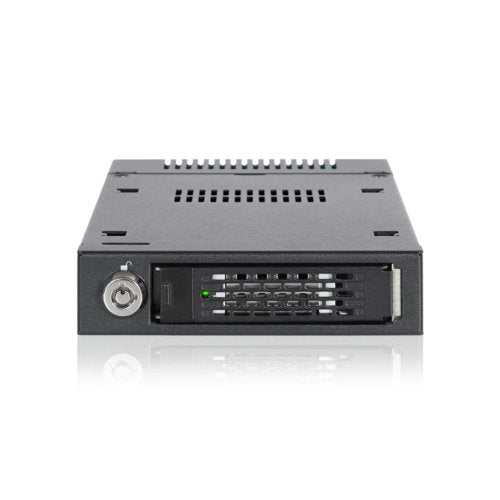

The ToughArmor MB601M2K-1B is the world’s first rugged M.2 NVMe removable mobile rack, supporting ultra-high speed 64Gbps data transfer using M.2 PCIe NVMe SSDs of all lengths and brands
Key Features

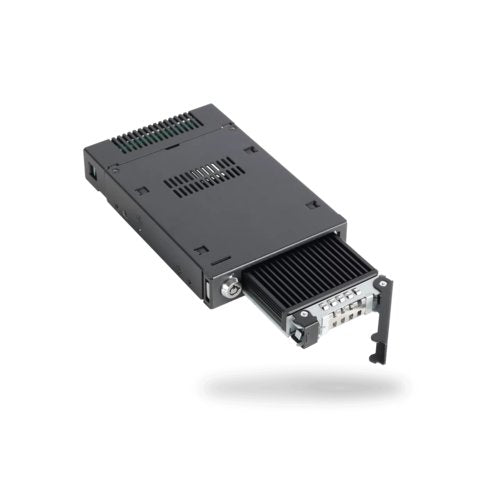

- The ToughArmor MB601M2K-B's removable M.2 SSD tray has a built-in M.2 to U.2 connector that can handle up to 10,000 insertion or removal cycles.
- The adjustable M.2 locker slides to accommodate all standard M.2 PCIe NVMe SSD drive lengths, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm) and 22110 (110mm).

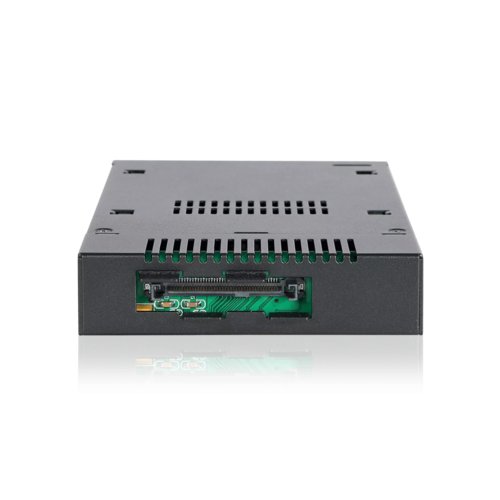

- Utilizes the U.2 (SFF-8639) NVMe connector to support the full NVMe bandwidth specification of 64Gbps, over 10 times faster than the previous SATA standard

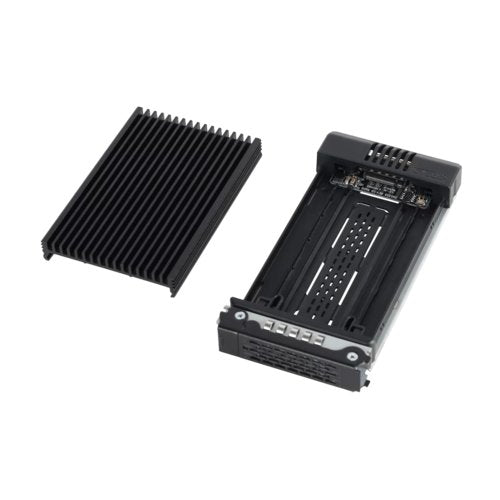

- The uniquely designed tray has an integrated aluminum heat sink with included thermal pads for maximum passive heat dispersion.
- An LED status light built into the tray lets you know when your drive is powered up and in use. To save power, the LED is shut off when no drive is installed
Dimensions
| Height | 1.38 inches |
|---|---|
| Width | 4.68 inches |
| Length | 7.88 inches |
| Weight | 1.35 pounds |
| Host Interface | U.2 (SFF-8639) |
| Product Type | Drive Bay Adapter |
| Form Factor | Internal |
| Product Line | ToughArmor |
| Brand Name | Icy Dock |
| Wireless LAN | No |
| Compatible Drive Bay Width | 3.5" |
| Number of Total Expansion Bays | 1 |
| Drive Interface | SATA/600 |
| Drive Interface | PCI Express NVMe |
| Drive Interface | M.2 |
| Product Color | Black |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Drive Bay Adapter |
| Manufacturer Part Number | MB601M2K-1B |
| Manufacturer Website Address | http://www.icydock.com |
| Packaged Quantity | 1 |
| Manufacturer | Icy Dock |
| Product Model | MB601M2K-1B |
| Product Name | ToughArmor MB601M2K-1B M.2 PCIe NVMe SSD Mobile Rack for External 3.5" Drive Bay |
| Product Line | ToughArmor |
| Brand Name | Icy Dock |
| Number of Total Expansion Bays | 1 |
| Hot Swappable Bays | Yes |
| Host Interface | U.2 (SFF-8639) |
| Drive Interface | SATA/600 |
| Drive Interface | PCI Express NVMe |
| Drive Interface | M.2 |

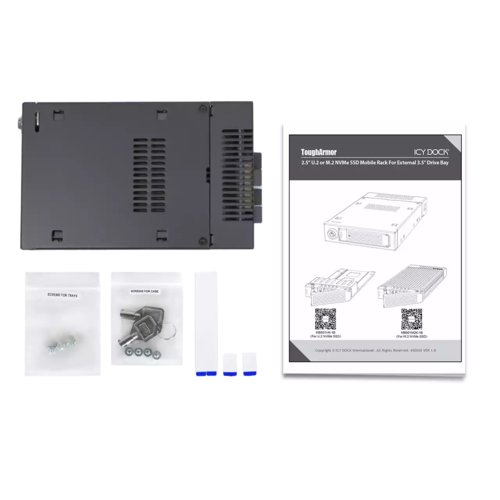

| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Wireless LAN | No |
| Weight (Approximate) | 1.20 lb |
| Form Factor | Internal |
| Height | 1" |
| Width | 4" |
| Depth | 6.6" |
| Compatible Drive Bay Width | 3.5" |
| Product Color | Black |
| Limited Warranty | 3 Year |
| Number of Hard Drives Supported | 1 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | 0 |
