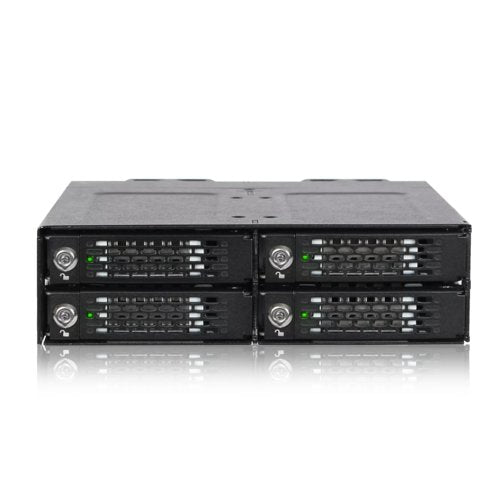

The MB720M2K-B holds up to 4x M.2 PCIe NVMe SSD, supporting PCIe x4 transfer speed up to 64Gbps via MiniSAS HD (SFF-8643). Our tray accepts all standard M.2 drives length from 30mm to 110mm
Key Features
- With the MB720M2K-B, your drives are brought to the front of the computer case, making M.2 drive installation and removal a more straightforward and efficient process.

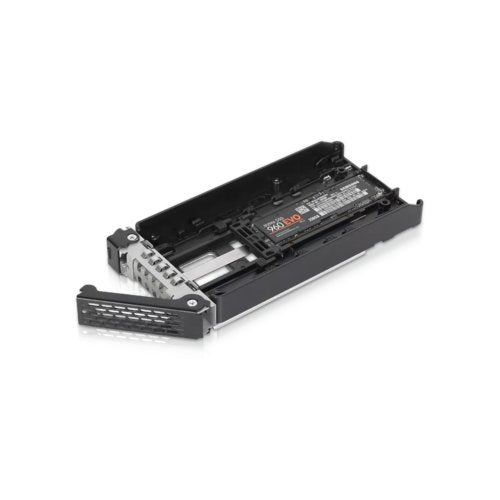

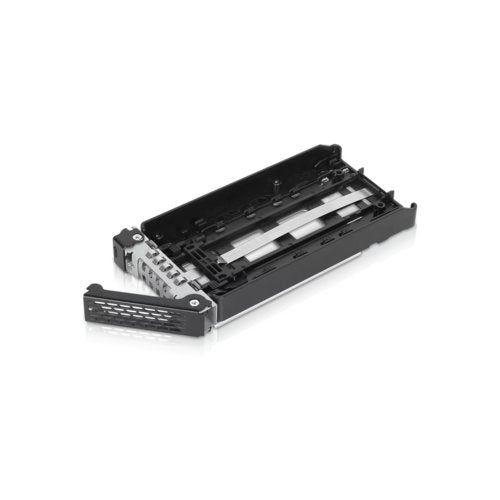

- The MB720M2K-B, the user can simply place their M.2 NVMe SSD in the drive tray, adjust the drive locker keep M.2 drive in pleace. Reattaching the heatsink would complete the process.
- The M.2 adjustable locker accommodates all standard M.2 PCIe NVMe SSD drives, making this drive universal to all M.2 drive length and future-proofing the extra-long M.2 110mm drive.
- The adjustable M.2 locker grounds your drive automatically once it locks the M.2 into place. The drive will be constantly grounded throughout the tray and housing of the enclosure
- Maximizing the potential transfer bandwidth rate of 64Gbps in each drive bay, each drive will use its’ own MiniSAS HD (SFF-8643) connector.
Dimensions
| Height | 3.2 inches |
|---|---|
| Width | 7.2 inches |
| Length | 9.2 inches |
| Weight | 3.43 pounds |
| Host Interface | Mini-SAS HD |
| Product Type | Drive Enclosure |
| Form Factor | Internal |
| Product Line | ToughArmor |
| Brand Name | Icy Dock |
| Wireless LAN | No |
| Compatible Drive Bay Width | 5.25" |
| Number of Total Expansion Bays | 4 |
| Drive Interface | M.2 |
| Drive Interface | PCI Express NVMe |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | MB720M2K-B |
| Manufacturer Website Address | http://www.icydock.com |
| Manufacturer | Icy Dock |
| Product Model | MB720M2K-B |
| Product Name | Full Metal 4 Bay M.2 NVMe SSD Mobile Rack for External 5.25" Drive Bay |
| Product Line | ToughArmor |
| Brand Name | Icy Dock |
| Number of Total Expansion Bays | 4 |
| Hot Swappable Bays | Yes |
| Host Interface | Mini-SAS HD |
| Drive Interface | M.2 |
| Drive Interface | PCI Express NVMe |

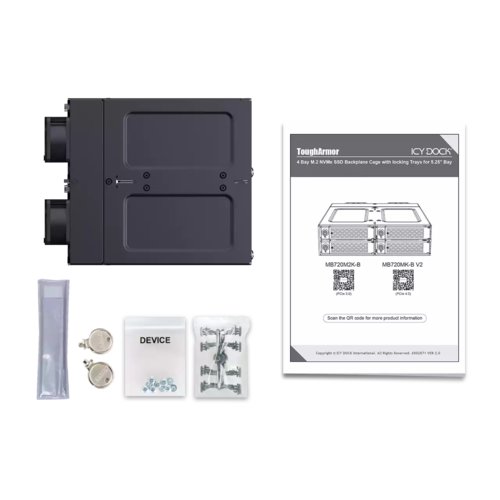

| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Wireless LAN | No |
| Weight (Approximate) | 2.94 lb |
| Form Factor | Internal |
| Height | 1.6" |
| Width | 5.7" |
| Depth | 6.7" |
| Compatible Drive Bay Width | 5.25" |

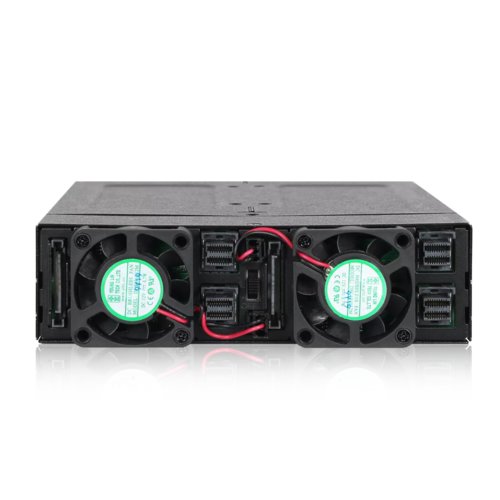

| Cooling Fan | Yes |
| Product Color | Black |
| Limited Warranty | 3 Year |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Installed | 0 |
