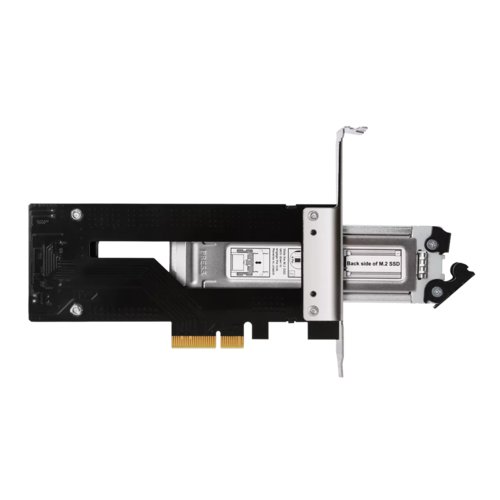

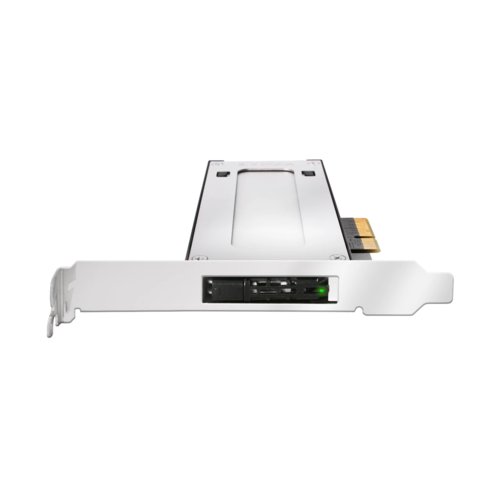

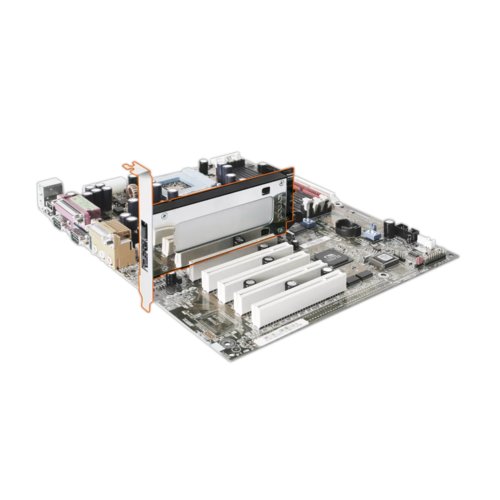

The ToughArmor MB840M2P-B turns a PCIe 4x, 8x, or 16x expansion slot into a removable M.2 NVMe drive bay, allowing you to swap in M.2 NVMe SSDs without needing to open the computer case.
Key Features

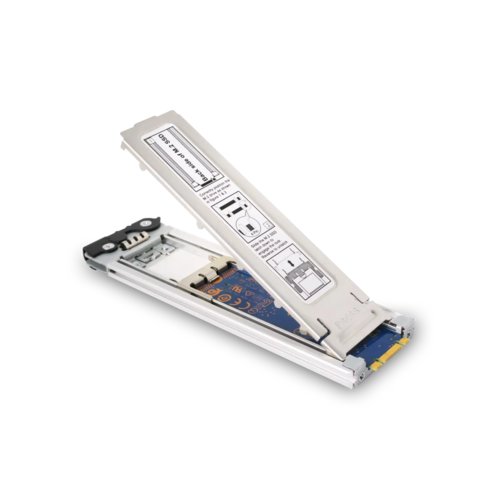

- The MB840M2P-B and it’s removable drive tray design, you can utilize the PCIe expansion slot and makes M.2 NVMe SSD installation and removal a more straightforward and productive process
- The whole process takes less than five seconds to complete, saving you the hassle of dealing with tiny screws and bringing an efficient and innovative way for M.2 SSD installation.
- The specialized slimline tray is made with thick aluminum and acts as heatsink to dissipate heat generated by the M.2 NVMe SSD.
- The included thermal pad filling the gap between the contact surface and transfer heat away from SSD to the larger surface, allowing airflow to move the heat away quickly.

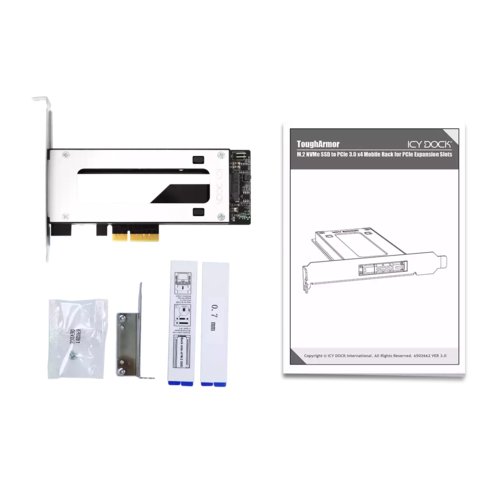

- The PCIe slot bracket of the MB840M2P-B can be swapped between full and half-height for flexible system installation (both brackets included).
Dimensions
| Height | 1.6 inches |
|---|---|
| Width | 6.1 inches |
| Length | 7.6 inches |
| Host Interface | PCI Express 3.0 x4 |
| Product Type | Drive Bay Adapter |
| Product Line | ToughArmor |
| Brand Name | Icy Dock |
| Wireless LAN | No |
| Drive Interface | PCI Express NVMe |
| Drive Interface | M.2 |
| Product Color | Black |
| Product Color | Silver |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Product Type | Drive Bay Adapter |
| Manufacturer Part Number | MB840M2P-B |
| Manufacturer Website Address | http://www.icydock.com |
| Manufacturer | Icy Dock |
| Product Model | MB840M2P-B |
| Product Name | M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot |
| Product Line | ToughArmor |
| Brand Name | Icy Dock |
| Hot Swappable Bays | Yes |
| Host Interface | PCI Express 3.0 x4 |
| Drive Interface | PCI Express NVMe |
| Drive Interface | M.2 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Wireless LAN | No |
| Weight (Approximate) | 6.40 oz |
| Height | 4.8" |
| Width | 6.3" |
| Depth | 0.9" |
| Product Color | Black |
| Product Color | Silver |
| Limited Warranty | 3 Year |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | 0 |
