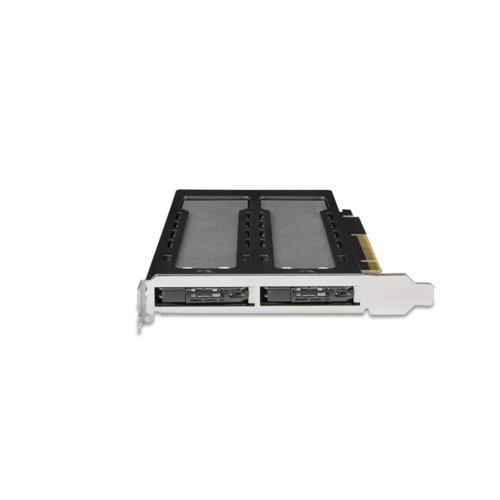

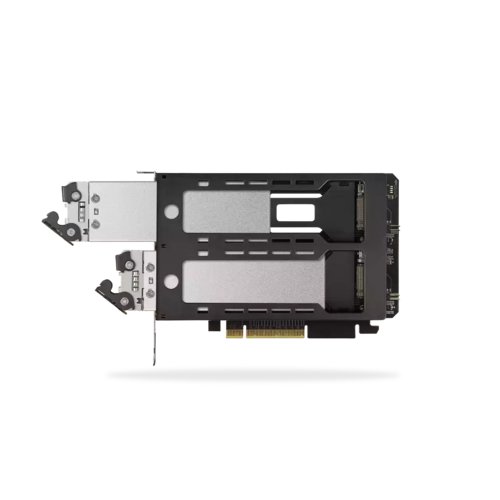

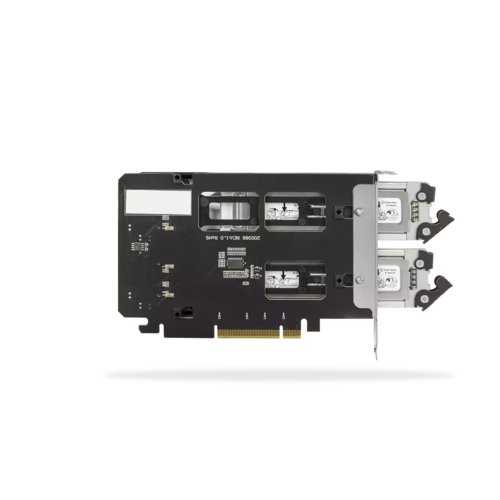

The ToughArmor MB842MP-B turns a PCIe 8x or 16x expansion slot into a dual removable M.2 NVMe drive bays, allowing you to swap the M.2 NVMe SSDs without needing to open the computer case.
Key Features
- The ToughArmor MB842MP-B’s removable drive tray design utilizes the PCI express slot to make the M.2 SSD installation and removal process completely hassle-free.
- The tool-less M.2 NVMe SSD installation design takes less than five seconds to complete, saving you the hassle of dealing with tiny easy-to-lose screws.

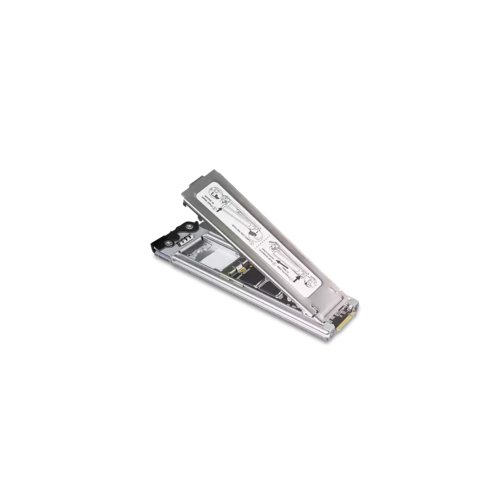

- The specialized slim M.2 drive tray is made of thick aluminum and acts as a heatsink to dissipate heat generated by the M.2 NVMe SSD.
- The included thermal pad fills the gap between the contact surface and transfers heat away from M.2 NVMe SSD to the larger aluminum surface, allowing airflow to move the heat away quickly.
- The MB842MP-B is designed for the PCIe slot and is compatible with PCIe 3.0/4.0 x8 and x16 slots. Required: PCIe Bifurcation mode (x4, x4, x4, x4 for PCIe 16x / x4, x4 for PCIe 8x slot)
Dimensions
| Height | 1.75 inches |
|---|---|
| Width | 6 inches |
| Length | 7.75 inches |
| Weight | 0.72 pounds |
| Host Interface | PCI Express 4.0 x8 |
| Product Type | Drive Enclosure |
| Form Factor | Internal |
| Product Line | ToughArmor |
| Brand Name | Icy Dock |
| Number of Total Expansion Bays | 2 |
| Drive Interface | PCI Express NVMe 4.0 |
| Product Color | Black |
| Product Color | Silver |
| Color Family | Dual Color |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | MB842MPB |
| Manufacturer Website Address | http://www.icydock.com |
| Manufacturer | Icy Dock |
| Product Model | MB842MP-B |
| Product Name | MB842MP-B Drive Enclosure |
| Product Line | ToughArmor |
| Brand Name | Icy Dock |
| Number of Total Expansion Bays | 2 |
| Host Interface | PCI Express 4.0 x8 |
| Drive Interface | PCI Express NVMe 4.0 |

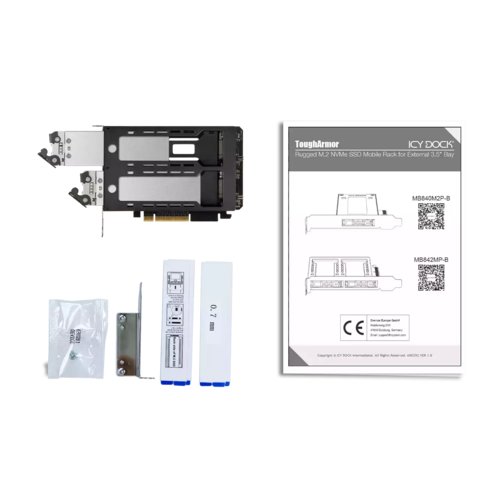

| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Weight (Approximate) | 8.20 oz |
| Form Factor | Internal |
| Height | 0.9" |
| Width | 4.8" |
| Depth | 6.7" |
| Product Color | Black |
| Product Color | Silver |
| Color Family | Dual Color |
| Limited Warranty | 5 Year |
| Number of Solid State Drive Supported | 2 |
| Number of Solid State Drive Installed | 0 |
