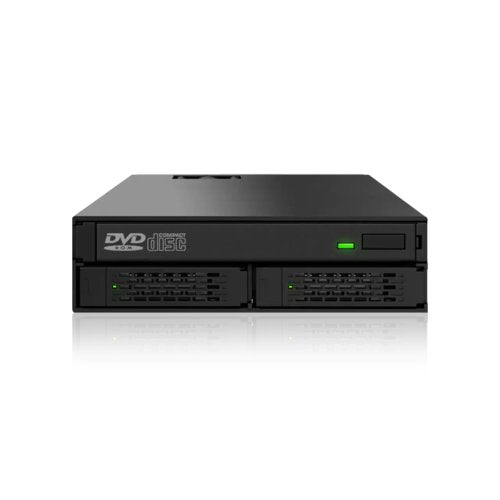

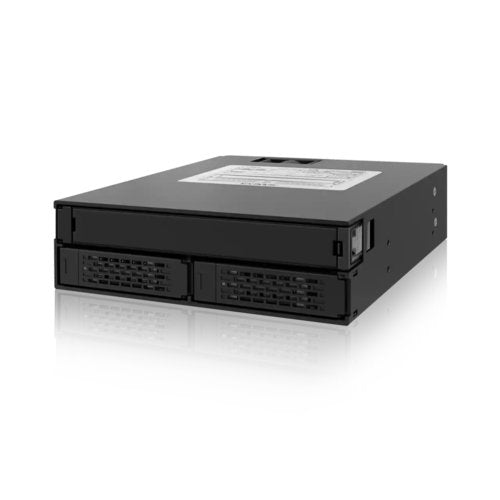

The MB994IPO-B, a rugged full metal dual bay 2.5" SATA/SAS hard drive / SSD mobile rack backplane designed with a Slim Optical Disk Drive (ODD) slot for use in a single external 5.25" bay
Key Features
- The MB994IPO-3SB packs two full-height 2.5" SSD/HDD hot-swap bays and one Slim/CD/DVD/Blu-ray ROM optical disk drive into a single 5.25" drive bay, perfect for space-sensitive applications
- The MB994IPO-3SB separates itself from the rest of the MB994 series by the unique Slim ODD. The Slim ODD is easily removable by use of the provided key or via a side latch.

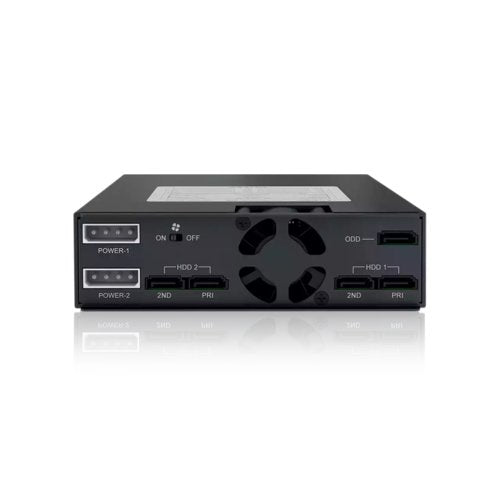

- Fan control further allows the system to be accommodated properly depending on the HDDs used. If a SSD is used, fan can be left off and shut off the noise completely from the MB994IKO-3SB
- The MB994IPO-3SB body is built with aluminum to be able to hold up in the toughest of conditions, provide excellent heat dissipation, and shave as much weight as possible
- Utilizing its small form factor, the MB994IPO-3SB is perfect for use in gaming PCs, small form factor cases with limited external 5.25” expansion bays, or a Slim ODD and HDDs are needed
Dimensions
| Height | 2.25 inches |
|---|---|
| Width | 6.25 inches |
| Length | 7.75 inches |
| Weight | 1.7 pounds |
| Host Interface | Serial ATA |
| Product Type | Drive Bay Adapter |
| Form Factor | Internal |
| Brand Name | Icy Dock |
| Compatible Drive Bay Width | 5.25" |
| Number of Total Expansion Bays | 3 |
| Number of 5.25" Bays | 1 |
| Number of 2.5" Bays | 2 |
| Drive Interface | Serial ATA |
| Drive Interface | Serial Attached SCSI (SAS) |
| Product Color | Matte Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Drive Bay Adapter |
| Manufacturer Part Number | MB994IPO-3SB |
| Manufacturer Website Address | http://www.icydock.com |
| Manufacturer | Icy Dock |
| Product Model | MB994IPO-3SB |
| Product Name | MB994IPO-3SB 2x 2.5" SATA/SAS HDD/SSD + Slim ODD 5.25" Backplane |
| Product Series | MB994 |
| Brand Name | Icy Dock |
| Number of Total Expansion Bays | 3 |
| Number of 5.25" Bays | 1 |
| Number of 2.5" Bays | 2 |
| Host Interface | Serial ATA |
| Drive Interface | Serial ATA |
| Drive Interface | Serial Attached SCSI (SAS) |
| Compatibility | Accommodate 9.5mm, 12.5mm & 15mm drives |
| Recycled | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 1.77 lb |
| Form Factor | Internal |
| Height | 1.6" |
| Width | 5.8" |
| Depth | 6.7" |
| Compatible Drive Bay Width | 5.25" |
| Cooling Fan | Yes |
| Product Color | Matte Black |
| Limited Warranty | 3 Year |
