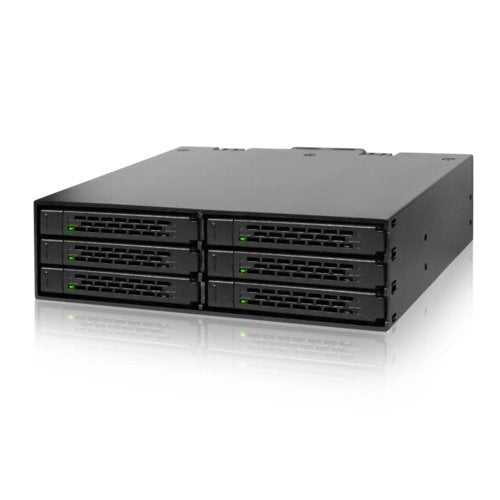

The MB996SP-6SB Rugged Full Metal 6 x 2.5” SATA HDD/SSD Backplane is a device commercially designed for Medical/Military systems, Media servers, and is approved & used by Tier 1 companies.
Key Features
- The MB996SP-6SB excels in advanced RAID applications as well as raw storage availability where many drives are needed to create a RAID array or JBOD storage.
- The MB996SP-6SB is capable of holding up in the various environments, with the rugged heavy duty full metal construction in the entirety of the body and its smaller components.

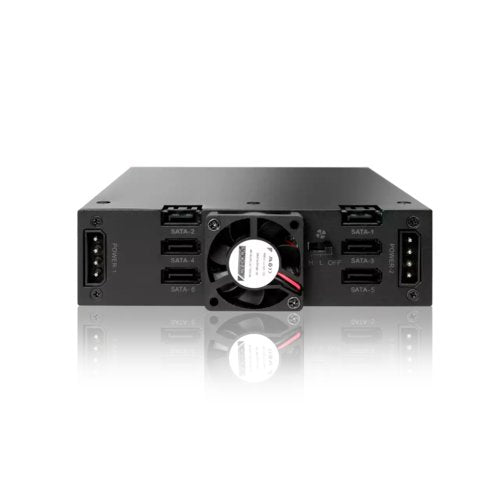

- LED’s are installed into the front of the mobile rack to provide individual drive status. A 40mm cooling fan with 3 adjustable speeds keep your drives cool and operational.

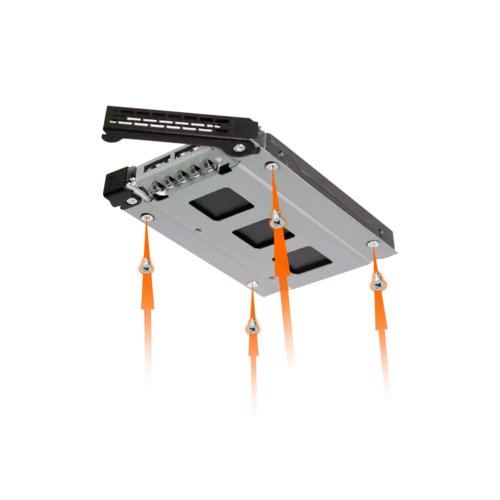

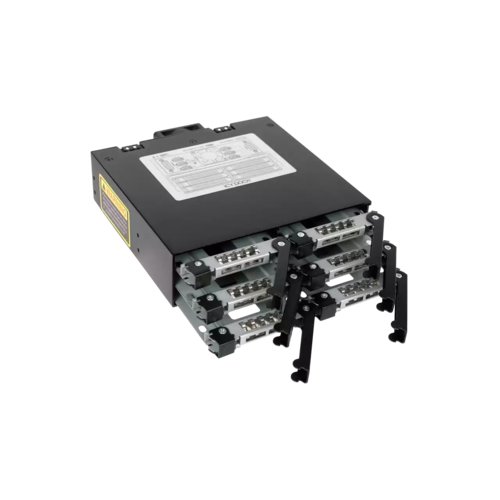

- Using the EZ Slide Micro trays makes drive interchangeability and maintenance completely hassle free. These trays are also designed to accommodate 5mm to 9.5mm height HDD/SSD's.

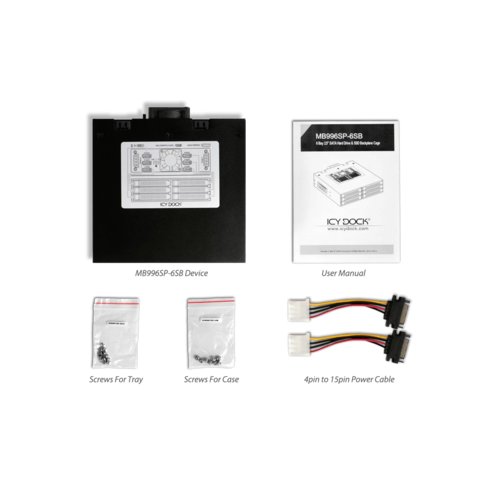

- With various systems to accommodate, dual 4-pin to 15-pin power adapters are included to fully accommodate all users.
Dimensions
| Height | 2.1 inches |
|---|---|
| Width | 6.15 inches |
| Length | 6.5 inches |
| Weight | 1.75 pounds |
| Host Interface | SATA/600 |
| Product Type | DAS Storage System |
| Form Factor | Internal |
| RAID Levels | 0, 1, 5, JBOD |
| Brand Name | Icy Dock |
| RAID Supported | Yes |
| Number of Total Expansion Bays | 6 |
| Number of Hard Drives Supported | 6 |
| Number of 2.5" Bays | 6 |
| Drive Interface | Serial ATA/600 |
| Limited Warranty Duration | 3 Year |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| RAID Levels | 0, 1, 5, JBOD |
| RAID Supported | Yes |
| Product Type | DAS Storage System |
| Manufacturer Part Number | MB996SP-6SB |
| Manufacturer Website Address | http://www.icydock.com |
| Manufacturer | Icy Dock |
| Product Model | MB996SP-6SB |
| Product Name | MB996SP-6SB 6 in 1 SATA Hot Swap Backplane RAID Cage |
| Brand Name | Icy Dock |
| Number of Total Expansion Bays | 6 |
| Number of 2.5" Bays | 6 |
| Host Interface | SATA/600 |
| Drive Interface | Serial ATA/600 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 1.77 lb |
| Form Factor | Internal |
| Height | 1.6" |
| Width | 5.8" |
| Depth | 5.8" |
| Features | Active Power Technology (APT) |
| Features | Vibration Resistant |
| Number of Hard Drives Supported | 6 |
| Number of Solid State Drive Supported | 6 |
