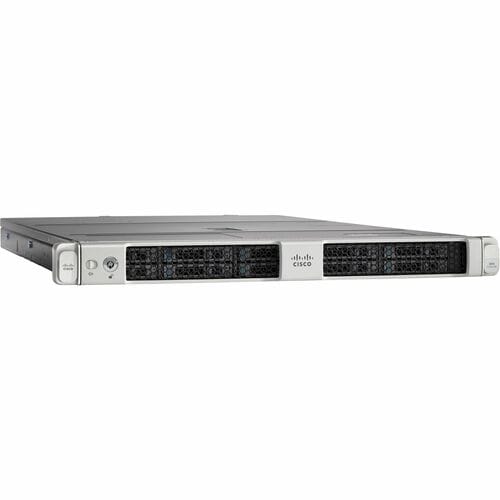

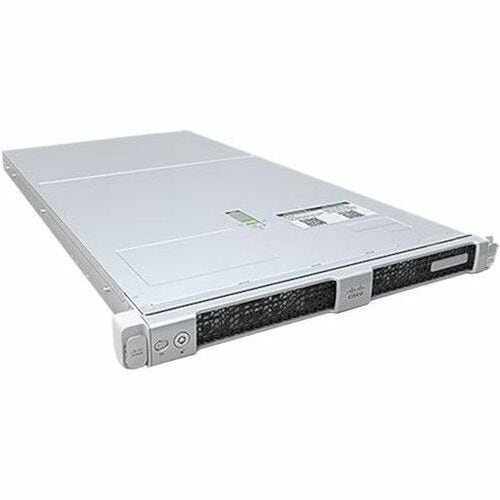

The UCS C225 M6 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the AMD CPUs, 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 128 GB. The maximum memory capacity for 2 CPUs is 4 TB (for 32 x 128 GB DDR4 DIMMs)
Key Features
- Perform computational tasks effectively accrediting the EPYC processor
- With NVMe interface get superb reliability and high-speed data transfer
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- Can connect up to 4 USB peripherals
Dimensions
| Product Type | Barebone System |
| Maximum Memory Supported | 8 TB |
| Limited Warranty | 3 Year |
| Chipset | AMD |
| Form Factor | Rack-mountable |
| Processor Supported | EPYC |
| Controller Type | NVMe |
| Rack Height | 1U |
| Brand Name | Cisco |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 512 MB |
| Number of Processors Supported | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | C225 M6 |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Total Number of Memory Slots | 32 |
| Chipset Manufacturer | AMD |
| Controller Type | NVMe |
| RAID Supported | Yes |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSCC225M6N |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | C225 M6 Barebone System |
| Product Series | C225 M6 |
| Brand Name | Cisco |
| Number of Total Expansion Bays | 10 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 2 |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 18.9" |
| Depth | 30" |
| Processor Supported | EPYC |
| Number of Processors Supported | 2 |
| Processor Supported | EPYC |
| Chipset Manufacturer | AMD |
| Number of Processors Supported | 2 |
| Limited Warranty | 3 Year |
