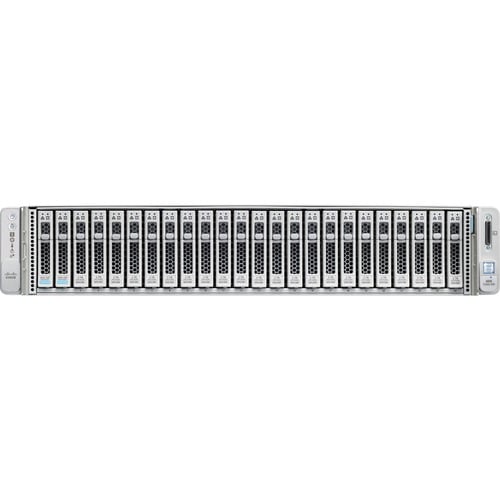

UCS C240 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and up to 128GB capacity points, up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C240 M5 server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded(on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
The C240 M5 server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded(on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Key Features
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
- 12Gb/s SAS interface for high speed and reliability
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Featuring 2 USB ports to connect USB-compatible devices
Dimensions
| Product Type | Barebone System |
| Maximum Memory Supported | 3 TB |
| Chipset | Intel C620 |
| Form Factor | Rack-mountable |
| Processor Supported | Xeon |
| Controller Type | 12Gb/s SAS |
| Rack Height | 2U |
| Brand Name | Cisco |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Graphics Controller Model | Pilot 4 |
| Graphics Memory Capacity | 16 MB |
| Number of Processors Supported | 2 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | C240 M5 |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Total Number of Memory Slots | 24 |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSC-C240-M5SN |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C240 M5 Barebone System |
| Product Series | C240 M5 |
| Brand Name | Cisco |
| Number of Total Expansion Bays | 26 |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 24 |
| Weight (Approximate) | 57.50 lb |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 19" |
| Depth | 30.2" |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Number of Processors Supported | 2 |
