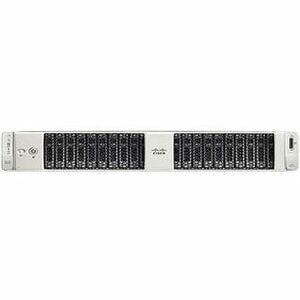

The Cisco UCS C240 M7 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the 5th Gen. Intel® Xeon® Scalable Processors, 16 DIMM slots per CPU for DDR5-5600 Memory DIMMs with DIMM capacity points up to 256GB or 4th Gen. Intel® Xeon® Scalable Processors, 16 DIMM slots per CPU for DDR5-4800 Memory DIMMs with DIMM capacity points up to 256GB.
The Cisco UCS C240 M7 SFF server harnesses the power of the latest Intel® Xeon® Scalable Processors , and offers the following:
CPU:
- Up to 2x 5th Generation Intel® Xeon® Scalable Processors with up to 64 cores per processor or
- Up to 2x 4th Generation Intel® Xeon® Scalable Processors with up to 60 cores per processor.
Memory:
- Up to 8TB with 32 x 256GB DDR5-5600 DIMMs, in a 2-socket configuration with 5th Gen. Intel® Xeon® Scalable Processors or
- Up to 8TB with 32 x 256GB DDR5-4800 DIMMs, in a 2-socket configuration with 4th Gen. Intel® Xeon® Scalable Processors.
The server provides one or two internal slot for one of the following:
- Cisco 24G Tri-mode RAID controller1 with cache backup to control SAS/SATA/NVMe drives or
- Cisco 12G RAID controller with cache backup to control SAS/SATA drives or
- Cisco 12G SAS pass-through HBA to control SAS/SATA drives
mLOM: The UCS C240 M7 SFF server has a single 1GBE management port. A modular LAN on motherboard (mLOM)/OCP 3.0 module provides up to two 100GBE ports. A connector on the front of the chassis provides KVM functionality.
Key Features
- Perform computational tasks effectively accrediting the Xeon Bronze processor
- 12Gb/s SAS interface for high speed and reliability
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- With 2 USB ports, connect/disconnect devices while not having to shut down the system
- With DDR5 SDRAM memory technology get efficient data transfer rate and enhanced computer's performance
Dimensions
| Product Type | Barebone System |
| Maximum Memory Supported | 8 TB |
| Chipset | Intel C741 |
| Form Factor | Rack-mountable |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Silver |
| Controller Type | 12Gb/s SAS |
| Rack Height | 2U |
| Brand Name | Cisco |
| Operating System Supported | Windows Server 2019 Standard |
| Operating System Supported | Windows Server 2019 Datacenter |
| Operating System Supported | Red Hat Enterprise Linux |
| Operating System Supported | Windows Server 2022 Datacenter |
| Operating System Supported | Windows Server 2022 Standard |
| Operating System Supported | SuSE Linux Enterprise Server |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Number of Processors Supported | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 6 |
| Product Family | C240 M7 |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Total Number of Expansion Slots | 6 |
| Total Number of Memory Slots | 32 |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Controller Type | 12Gb/s SAS |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSCC240M7SX |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C240 M7 Barebone System |
| Product Series | C240 M7 |
| Brand Name | Cisco |
| Number of Total Expansion Bays | 24 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 6 |
| Total Number of Expansion Slots | 6 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Card Supported | SD |
| Memory Standard | DDR5-5600/PC5-44800 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 32 |
| Weight (Approximate) | 72.97 lb |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 16.9" |
| Depth | 30" |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Silver |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Gold |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Number of Processors Supported | 2 |
