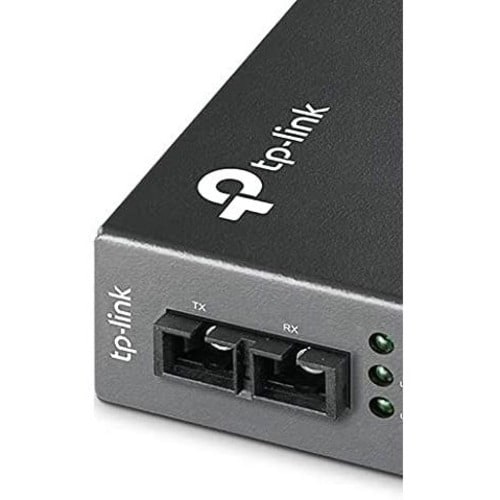

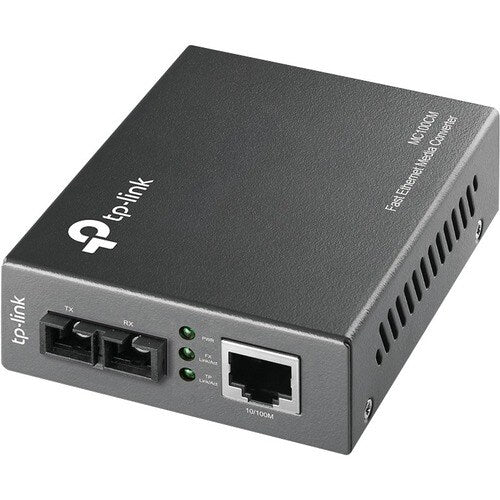

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector.
Key Features
- Designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa.
- Works at 100Mbps in Full-Duplex mode for both TX port and FX port.
- Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.
- Extends fiber distance up to 1.2 mile (2km).
- Easy-to-view LED indicators provide status to monitor network activity easily.
- External power supply. Wave Length: 1310nm. Max Power Consumption: 2.4W.
Dimensions
| Height | 3 inches |
|---|---|
| Width | 7 inches |
| Length | 8.25 inches |
| Weight | 0.8 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 2 km |
| Power Source | Power Adapter |
| Form Factor | External |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-FX |
| Brand Name | TP-Link |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | MC100CM |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | MC100CM |
| Product Name | MC100CM Fast Ethernet Media Converter |
| Brand Name | TP-Link |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Maximum Distance Supported | 2 km |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Additional Information | Wavelength: 1310 nm |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-FX |
| Height | 1.1" |
| Width | 3.7" |
| Depth | 2.9" |
