Adds extra storage to USB 3.2 Gen 2x2 enabled computers
Features- This ultra small enclosure easily adds fast M.2 (M key) PCIe NVMe SSD storage to your Windows or Mac computers through USB 3.2 Gen 2x2 USB-C port
- Ultra-fast data transfer rate up to 20Gbps through USB 3.2 Gen 2x2 with UASP technology. Requires UASP compatible USB 3.2 Gen 2 2x2 host controller hardware along with Windows 10 and Windows 8 USB 3.2 host controller drivers
- Compliant with SuperSpeed USB 20Gbps/10Gbps/5Gbps, High Speed 480Mbps, and Full Speed 12Mbps
- Accommodates 2230, 2242, 2260, and 2280 form factor M-Key M.2 PCIe NVMe SSD. Note: Does NOT work with B-key M.2 PCIe NVMe SSDs or M.2 SATA SSDs
- USB Type-C (USB-C) interface with reversible connection design supports non-directional plug-in connection
- Compatible with PCIe 3.0 x4 specification and backward compatible with PCIe 1.0 and PCIe 2.0
- Aluminum housing offers durability and excellent neat dissipation for long life and reliable performance
- Ultimate SuperSpeed transmission allows you to enjoy unprecedented data transfer speed, saves times for large-capacity data transmission and improves efficiency working at the office or home
- Convenient tool free design, easily installs your NVMe SSD without using a screw driver
- Bus powered for extra portability, no need to take along a separate power adapter while on-the-go
- Built-in LED indicates power and data transfer status
- Plug-n-Play with no driver installation required
- Includes USB-C cable for easy connection to notebook or laptop
Key Features
- This ultra small enclosure easily adds fast M.2 (M key) PCIe NVMe SSD storage to your Windows or Mac computers through USB 3.2 Gen 2x2 USB-C port
- Ultra-fast data transfer rate up to 20Gbps through USB 3.2 Gen 2x2 with UASP technology. Requires UASP compatible USB 3.2 Gen 2 2x2 host controller hardware along with Windows 10 and Windows 8 USB 3.2 host controller drivers
- Compliant with SuperSpeed USB 20Gbps/10Gbps/5Gbps, High Speed 480Mbps, and Full Speed 12Mbps

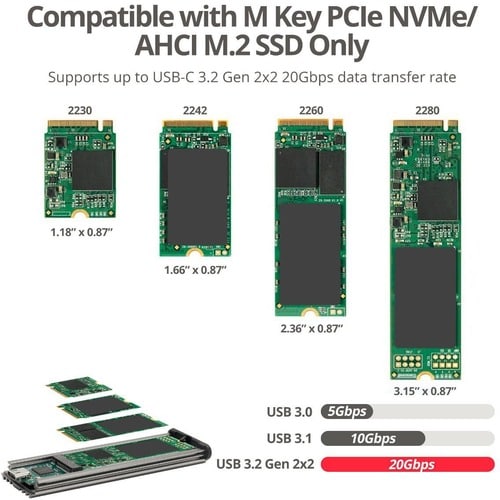

- Accommodates 2230, 2242, 2260, and 2280 form factor M-Key M.2 PCIe NVMe SSD. Note: Does NOT work with B-key M.2 PCIe NVMe SSDs or M.2 SATA SSDs
- USB Type-C (USB-C) interface with reversible connection design supports non-directional plug-in connection
- Compatible with PCIe 3.0 x4 specification and backward compatible with PCIe 1.0 and PCIe 2.0

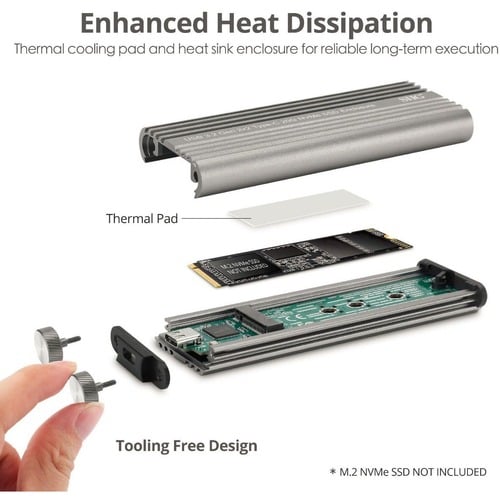

- Aluminum housing offers durability and excellent neat dissipation for long life and reliable performance
- Ultimate SuperSpeed transmission allows you to enjoy unprecedented data transfer speed, saves times for large-capacity data transmission and improves efficiency working at the office or home
- Convenient tool free design, easily installs your NVMe SSD without using a screw driver
- Bus powered for extra portability, no need to take along a separate power adapter while on-the-go
Dimensions
| Height | 1.7 inches |
|---|---|
| Width | 6.4 inches |
| Length | 8.7 inches |
| Weight | 0.55 pounds |
| Host Interface | USB 3.2 (Gen 2) Type C |
| Product Type | Drive Enclosure |
| Brand Name | SIIG |
| Wireless LAN | No |
| Drive Interface | PCI Express NVMe |
| Product Color | Silver |
| Color Family | Silver |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | JU-SA0X11-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Manufacturer | SIIG, Inc |
| Product Model | JU-SA0X11-S1 |
| Product Name | USB 3.2 Gen 2x2 Type-C 20G NVMe SSD Enclosure |
| Brand Name | SIIG |
| Host Interface | USB 3.2 (Gen 2) Type C |
| Drive Interface | PCI Express NVMe |

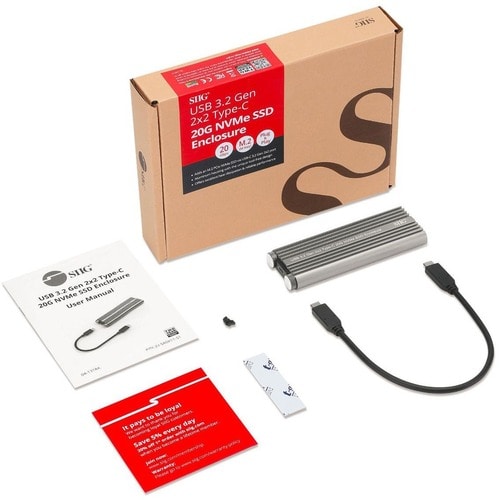

| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Wireless LAN | No |
| UASP Support | Yes |
| Weight (Approximate) | 4 oz |
| Height | 0.6" |
| Width | 1.8" |
| Depth | 4.8" |
| Product Color | Silver |
| Color Family | Silver |
| Limited Warranty | 2 Year |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | 0 |
