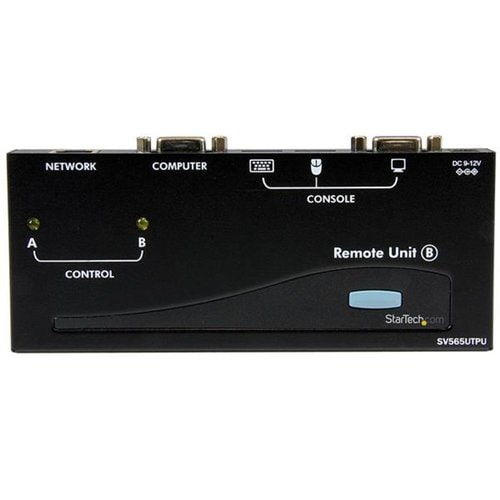

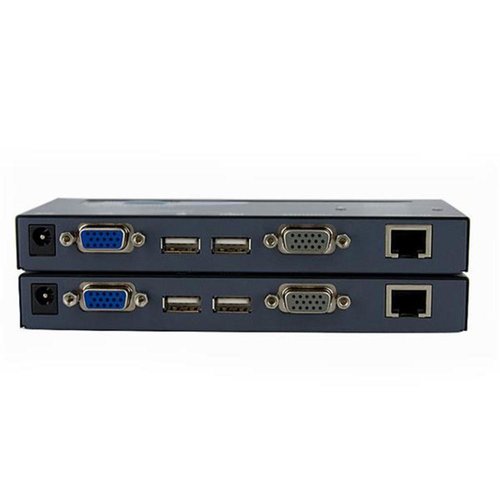

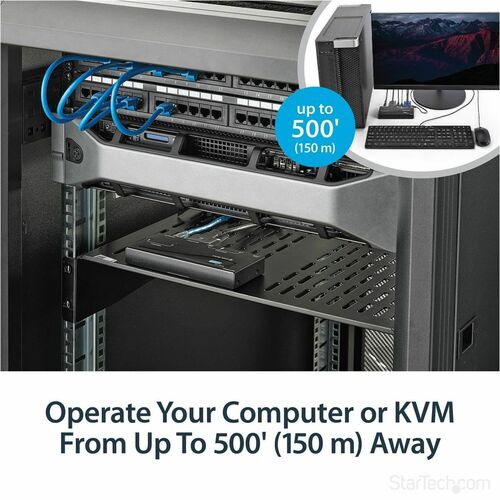

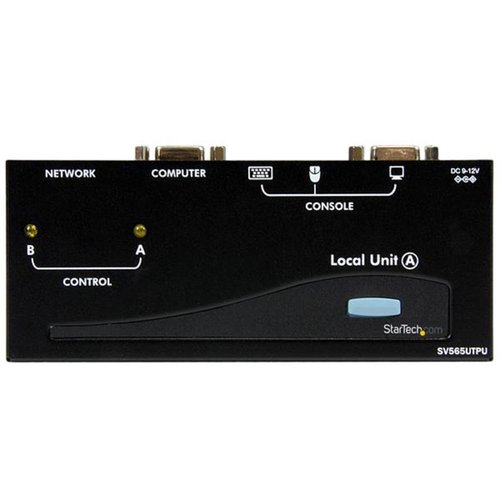

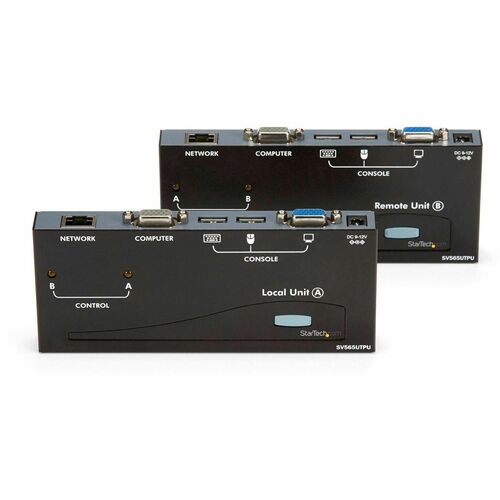

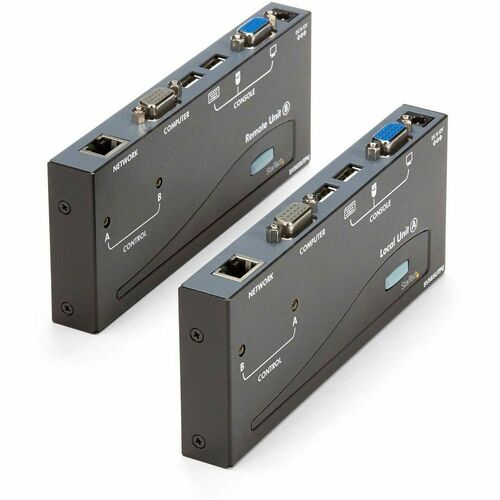

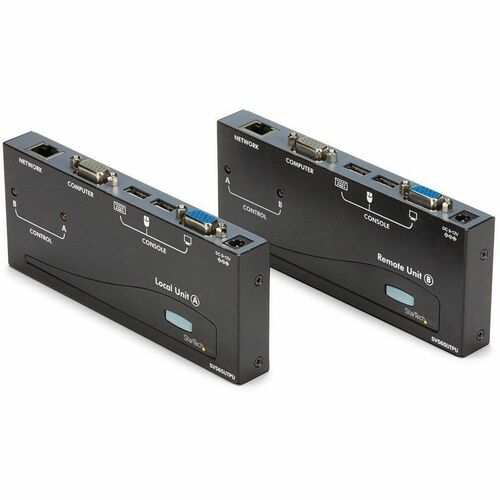

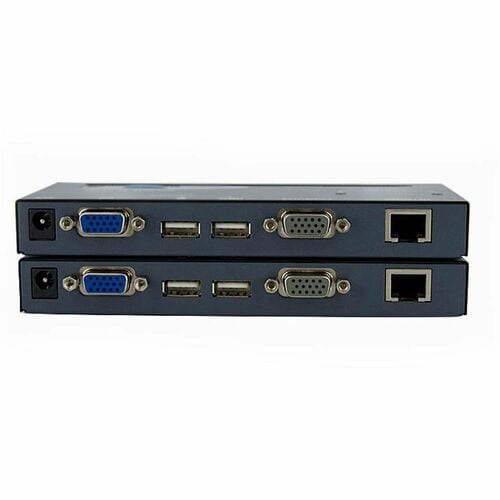

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
Key Features

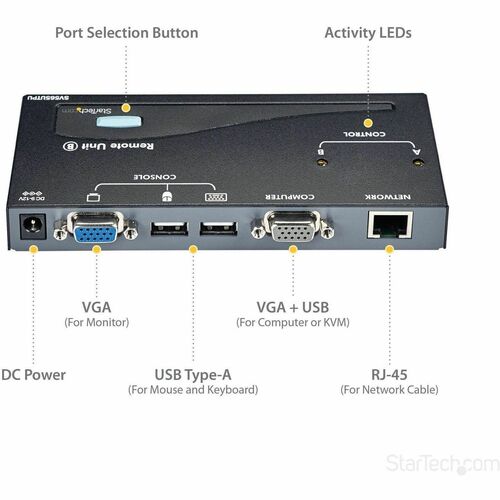

- PS/2 and USB host PC's supported via the appropriate PS2 or USB KVM cable (USB style included)

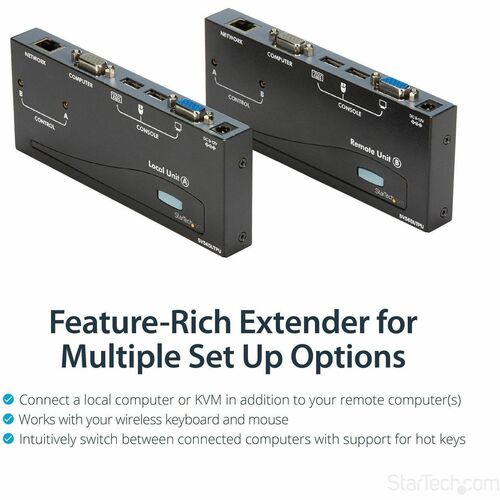

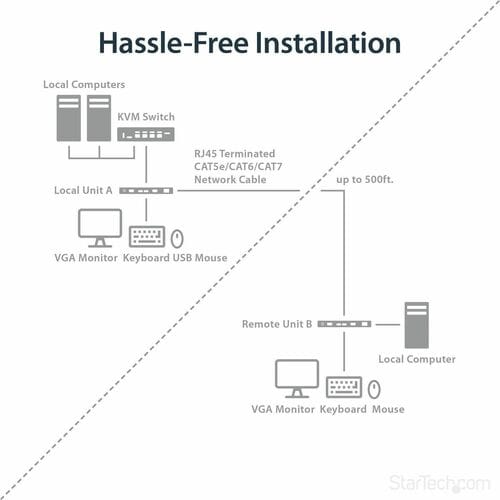

- Can be used with a single computer or connected to an existing KVM switch
- Easy installation using industry-standard UTP network cable
- Supports most combo keyboard and mouse sets (including Wireless)
- Intuitive hotkey commands
- Supports auto-switching between host and remote users or dedicated control
Dimensions
| Height | 3.4 inches |
|---|---|
| Width | 9.7 inches |
| Length | 11.8 inches |
| Weight | 2.95 pounds |
| Product Type | KVM Console/Extender |
| Connectivity Technology | Wired |
| Form Factor | Desktop |
| Brand Name | StarTech.com |
| Input Voltage Range | 110 VCA a 240 VCA |
| Maximum Video Resolution | 1024 x 768 |
| Maximum Operating Distance | 500 ft |
| USB | Yes |
| VGA | Yes |
| Network (RJ-45) | Yes |
| KVM Technology | Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| TAA Compliant | Yes |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | KVM Console/Extender |
| Manufacturer Part Number | SV565UTPU |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Kit |
| Manufacturer | StarTech.com |
| Product Model | SV565UTPU |
| Product Name | USB VGA KVM Console Extender over CAT5 UTP - 500 ft |
| Brand Name | StarTech.com |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 4 |
| Number of VGA Ports | 4 |
| Package Contents | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Transmitter Height | 0.80" |
| Transmitter Width | 6.10" |
| Receiver Height | 0.80" |
| Receiver Width | 6.10" |
| Transmitter Weight (Approximate) | 1.32 lb |
| Receiver Weight (Approximate) | 1.32 lb |
| Receiver Length | 3" |
| Product Color | Black |
| Color Family | Black |
| Transmitter Length | 3" |
| Power Consumption | 5.40 W |
| Maximum Video Resolution | 1024 x 768 |
| Graphic Mode | XGA |
| Additional Warranty Information | This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. |
| Limited Warranty | 2 Year |
| Maximum Operating Distance | 500 ft |
| KVM Technology | Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
