Intel ATX motherboard LGA 2066 for Intel Core X-series processors, with AI Overclocking, 12 IR3555 power stages, DDR4 4266 MHz, Triple M.2, USB 3.2 Gen 2 Type-C and Aura Sync RGB lighting
- Intel LGA 2066 socket: Ready for the latest Intel® Core™ X-series processors
- AI Overclocking: Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
- Robust power design: 12 IR3555 power stages, ProCool II connectors, alloy chokes and ultra-durable capacitors for stable power delivery
- M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20° C for unthrottled transfer speeds and enhanced reliability
- Next-gen connectivity: Intel Optane memory ready, Intel® VROC support, dual M.2 support, and USB 3.2 Gen Type-C™
PRIME

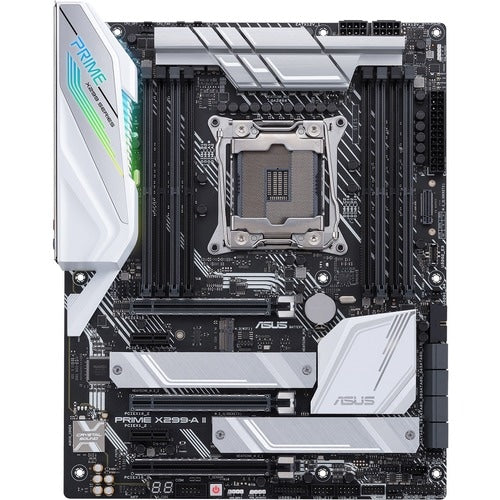

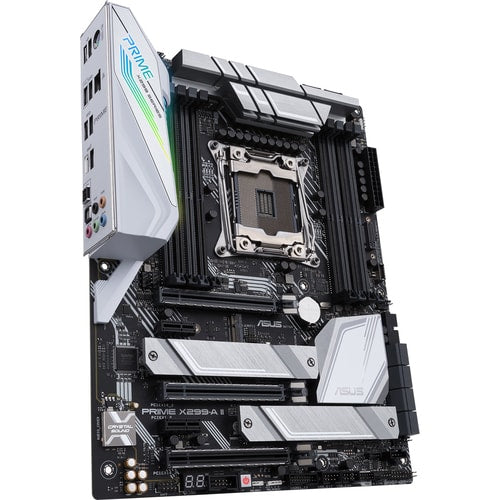

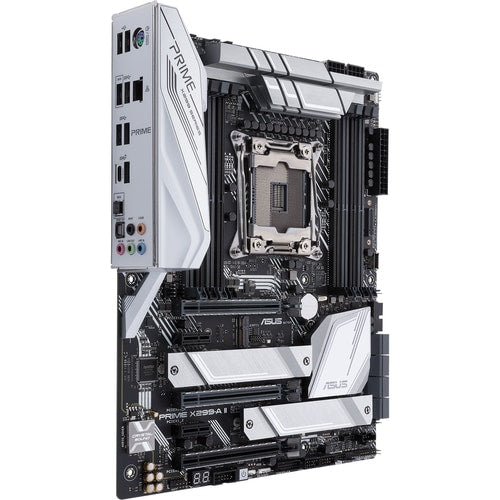

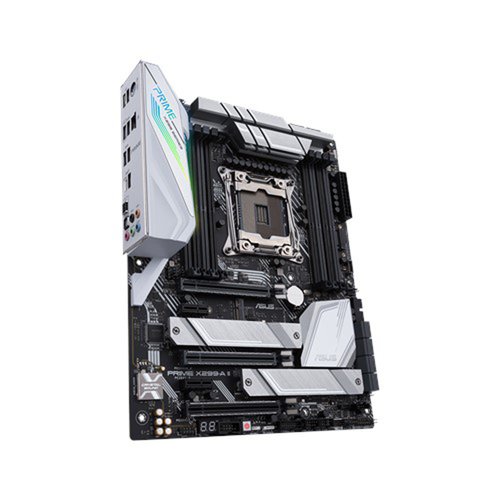

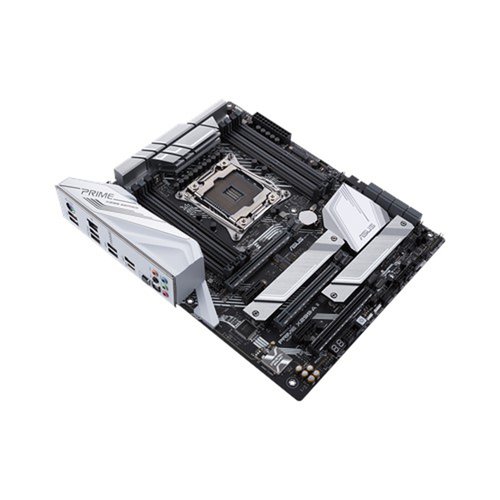

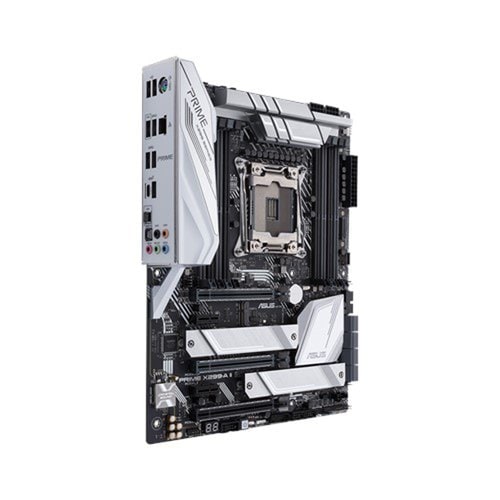

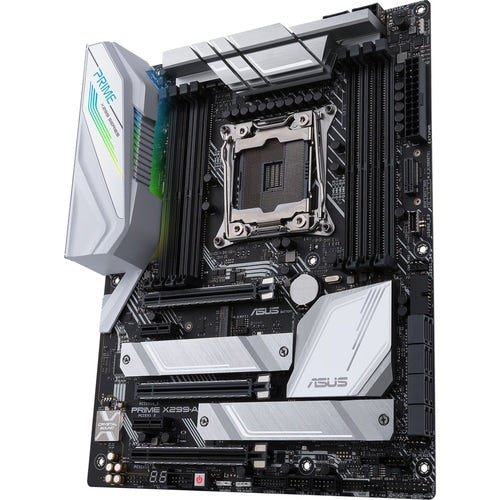

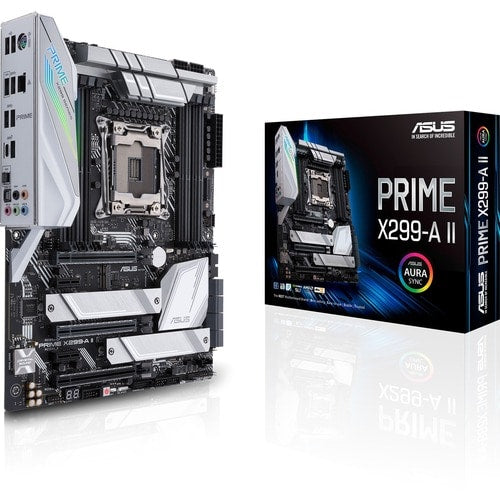

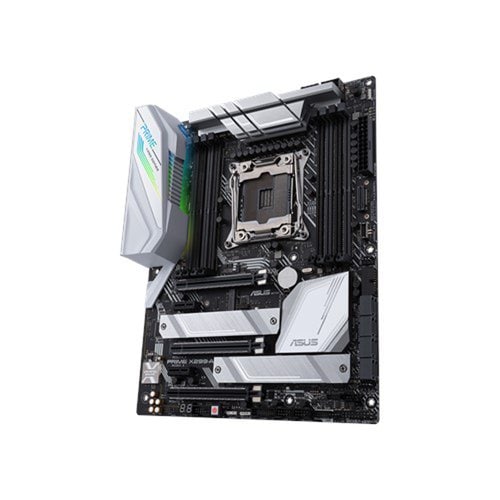

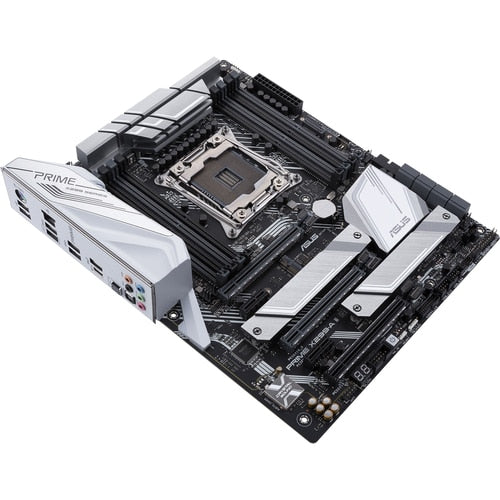

The Prime X299-A II caters to users with serious pursuits: Those who prefer to put their high-core-count processors to more productive use. This high-end desktop board combines cutting-edge performance with our signature features, including an enhanced VRM tailored for running the CPU performance at stock speeds, intuitive cooling control, next-gen connectivity, and extensive customization.
Get the most out of all your cores
Intel®'s high-end desktop platform raises the stakes with updated Intel Core™ X-Series Processors that boast cores, cache, and bandwidth. The Prime X299-A II is ready for the additional processing power that plows through CPU-intensive tasks, and the extra bandwidth allows you to add more GPUs and NVMe SSDs to accelerate a wide range of work.
Robust Power Design
The LGA 2066 socket is compatible with Intel Core X-Series Processors with up to 18 cores, over 44 PCI Express® lanes, and 165-watt thermal design power (TDP). Those specs require serious power, so the Prime X299-A II is equipped with an enhanced power solution that includes 12 power stages that line up neatly along the top edge of the PCB.
ProCool II connector
ProCool II connectors ensure a snug and reliable connection to the EPS 12V power lines. The second-generation features upgrades of metal amour and solid pins for better heat dissipation, as well as a warning LED-display with a BIOS POST message to indicate an improper connection.
PowIRstage MOSFETS
Prime X299-A II VRM is comprised of 12 IR3555 PowIRstages®, each rated to handle 60 amps
Microfine Alloy choke
Each PowIRstage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
Make your memory go faster
The X299 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots. With optimized trace layout, the Prime X299-A II can hit memory speeds up to DDR4 4266 MHz or beyond.
Multi-GPU support
Fully loaded takes on a new meaning when you have over 44 PCI Express lanes stemming from the CPU. Those lanes can be split in an x16/x16/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of work.
M.2Achieve speed with onboard M.2

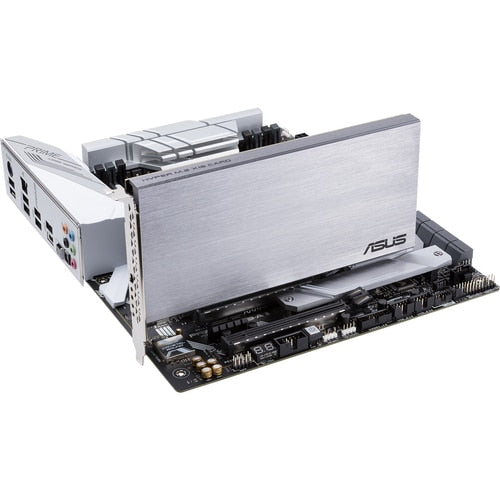

Professional applications require fast solid-state storage, which is why the Prime X299-A II is equipped with three M.2 slots that are compatible with the latest NVMe SSDs. All slots support longer 110 mm drives, and they can be configured into bootable RAID arrays connected directly to the CPU via Intel VROC technology.
Key Features
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- Core X-Series processors supported for enhanced, dependable system performance with maximum usability
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- RAID supported levels provide data reliability and fault tolerance
- With 2 USB 2.0 ports, transfer several documents without error
Dimensions
| Height | 3.5 inches |
|---|---|
| Width | 11.5 inches |
| Length | 13.5 inches |
| Weight | 4.6 pounds |
| Audio Channels | 7.1 |
| Product Type | Desktop Motherboard |
| Maximum Memory Supported | 256 GB |
| Form Factor | ATX |
| Processor Supported | Core X-Series |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket R4 LGA-2066 |
| Brand Name | Asus |
| Memory Technology | DDR4 SDRAM |
| Chipset Manufacturer | Intel |
| Chipset Model | X299 |
| Number of Memory Slots | 8 |
| Multi GPU Supported | CrossFireX |
| Multi GPU Supported | SLI |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 8 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Video | No |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| Total Number of USB Ports | 8 |
| Total Number of Onboard USB Ports | 9 |
| Total Number of PCI Express Slots | 5 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Total Number of Expansion Slots | 5 |
| Number of M.2 Interfaces | 3 |
| Intel Optane Memory Ready | Yes |
| Number of USB 3.2 Ports | 6 |
| Number of Onboard USB 3.2 Ports | 5 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | PRIME X299-A II |
| Manufacturer Website Address | http://usa.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | X299-A II |
| Product Name | Prime X299-A II Desktop Motherboard |
| Product Line | Prime |
| Brand Name | Asus |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 5 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Intel VROC | Yes |
| Intel RSTe | Yes |
| Intel RST | Yes |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 5 |
| Total Number of Expansion Slots | 5 |
| S/PDIF | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 6 |
| Maximum Memory | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 8 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Intel Optane Memory Ready | Yes |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 3 |
| Number of Onboard USB 3.2 Ports | 5 |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Processor Supported | Core X-Series |
| Total Processor Supported | 1 |
| Processor Socket | Socket R4 LGA-2066 |
| Chipset Manufacturer | Intel |
| Multi GPU Supported | CrossFireX |
| Multi GPU Supported | SLI |
| Onboard Video | No |
